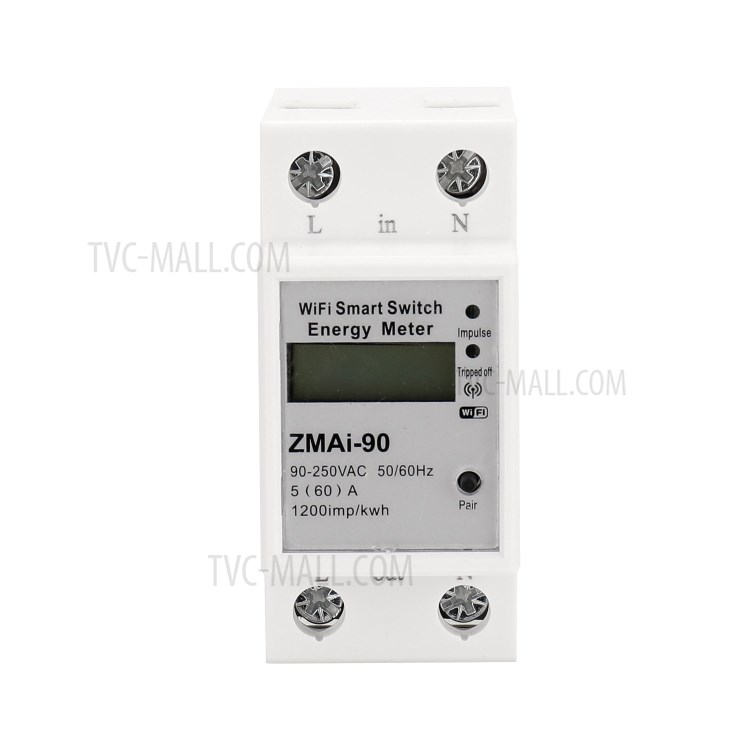

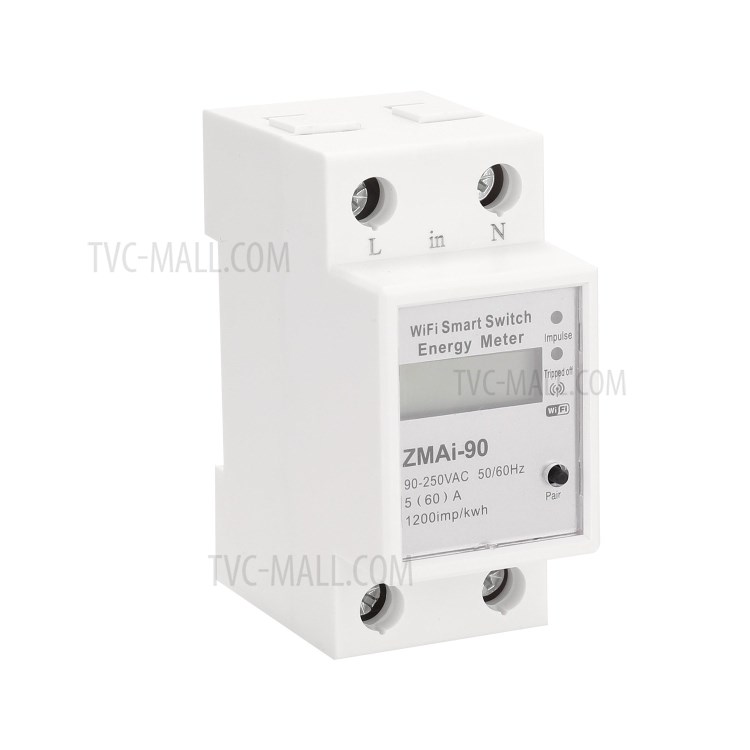

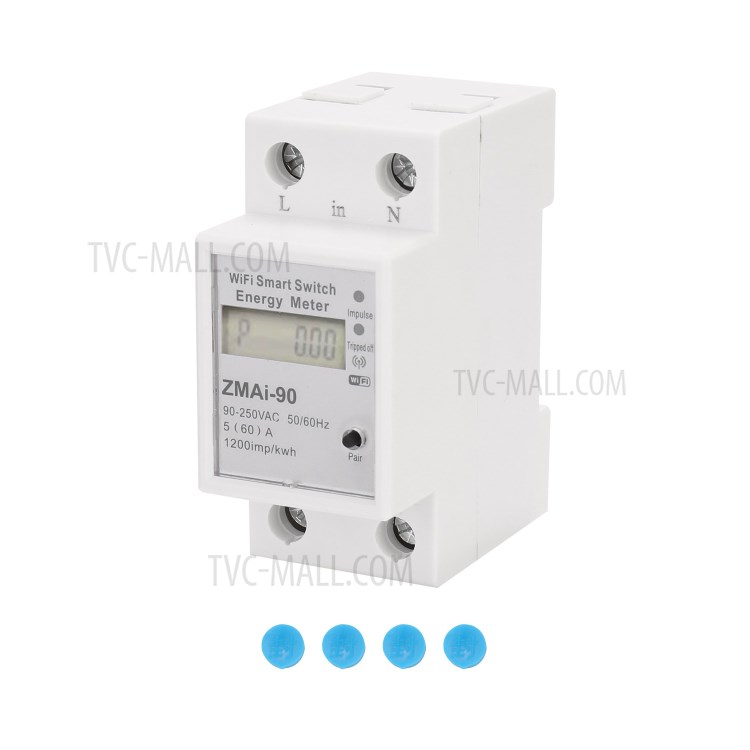

Single Phase Din Rail Wifi Intelligent Energy Meter with LCD Display Power Consumption Kwh Meter Wattmeter

This is a kind of fine quality single phase WiFi intelligent energy meter, with LCD display, real-time display voltage, current, power, total energy kWh. Calculate total consumption, real-time view of power consumption via mobile phone. Can be fixed in a 35mm mounting din rail, simple and convenient. Timing function, use countdown timers to turn on/off at a specified time. APP remote control, you can manage connected devices at any time through Tuya application or the Smartlife application, no matter where you are.

• Made of fine quality ABS material, impact resistance, heat-resistant, cold-resistant, and with fine insulating effect

• Calculate total consumption, real-time view of power consumption via mobile phone

• LCD display, real-time display voltage, current, power, total energy kWh

• This metering switch can set 30 kinds of time models, also has time delay function

• Mini and compact design, saving installation space and making the installation more beautiful.

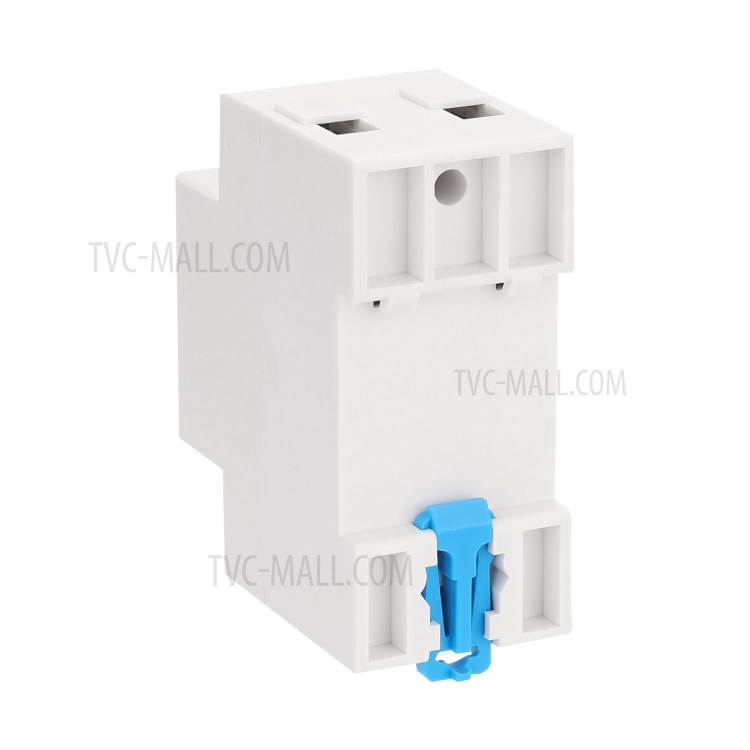

• Can be fixed in a 35mm mounting din rail, simple and convenient

• Remote ON/OFF, easy to turn electrical devices on/off from anywhere

• Timing function, use countdown timers to turn on/off at a specified time

• APP remote control, you can manage connected devices at any time through Tuya application or the Smartlife application, no matter where you are

• When you leave your home or fast-forward your home, you can control the status of your home device at any time via the mobile APP

• Compatibility with Alexa and Google Home

• Equipped with one LCD display, which can be used for more than 10 years under normal conditions

• With active energy pulse output for calibration, it is a passive photoelectric isolation type OC gate output port with a pulse width of 80ms ±20ms; the waveform is square wave

• With high brightness LED indicator, which can provides long service time

• With UART interface communication mode, can expand other communication methods

• Which is used to measure single phase AC active energy with rated frequency of 60Hz

• It has higher integration and superior anti-electromagnetic interference performance

• It has an untra-wide operating voltage range, high reliability, long life, high accuracy, and low power consumption

Specifications:

• Rated current: 60A

• Reference voltage: 90-250V

• Frequency: 60Hz

• Pulse frequency: 1200imp/kwh

• Installation: 35mm Din Rail

• Power rate: 1W/6VA

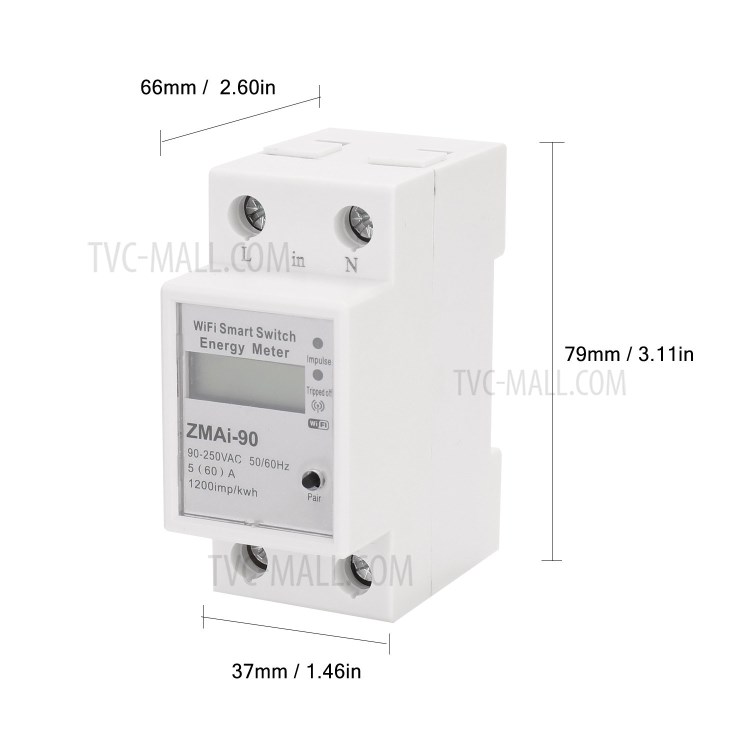

• Item size: 79 x 37 x 66mm / 3.11 x 1.46 x 2.60in

• Item weight: 185g / 6.53ounce
