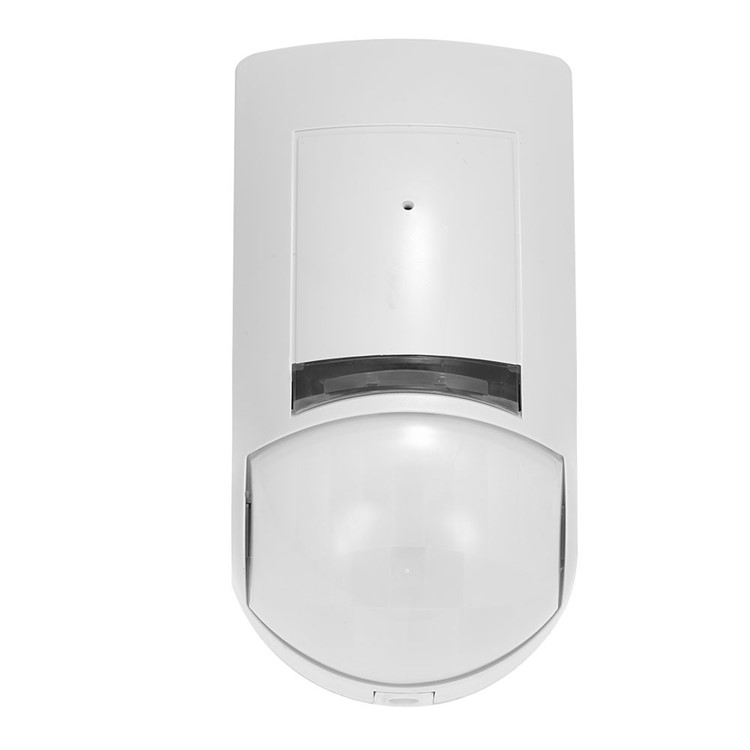

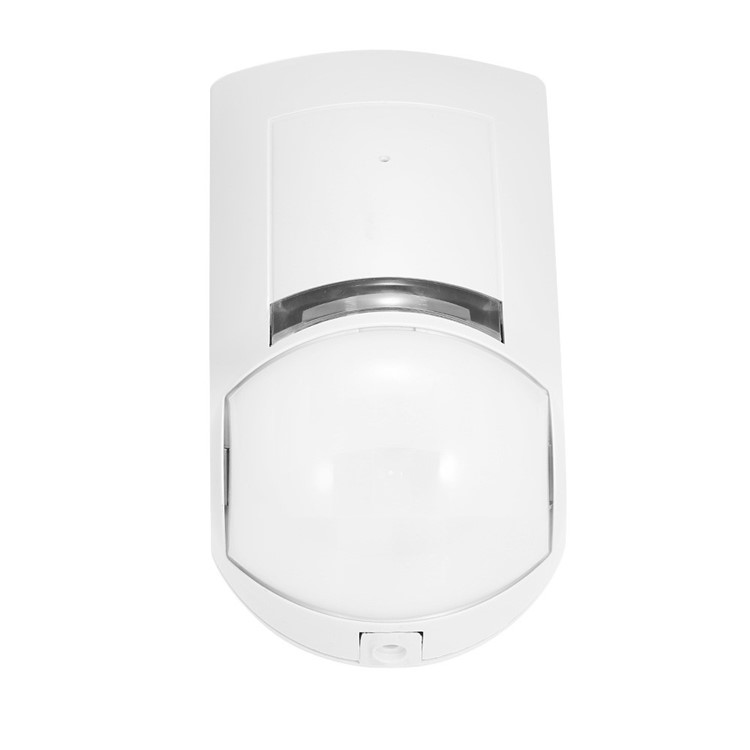

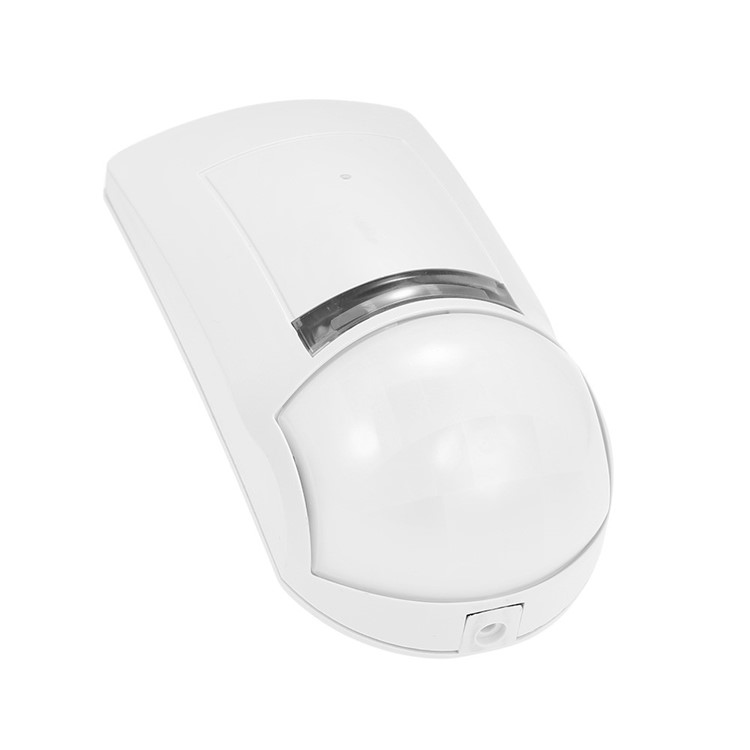

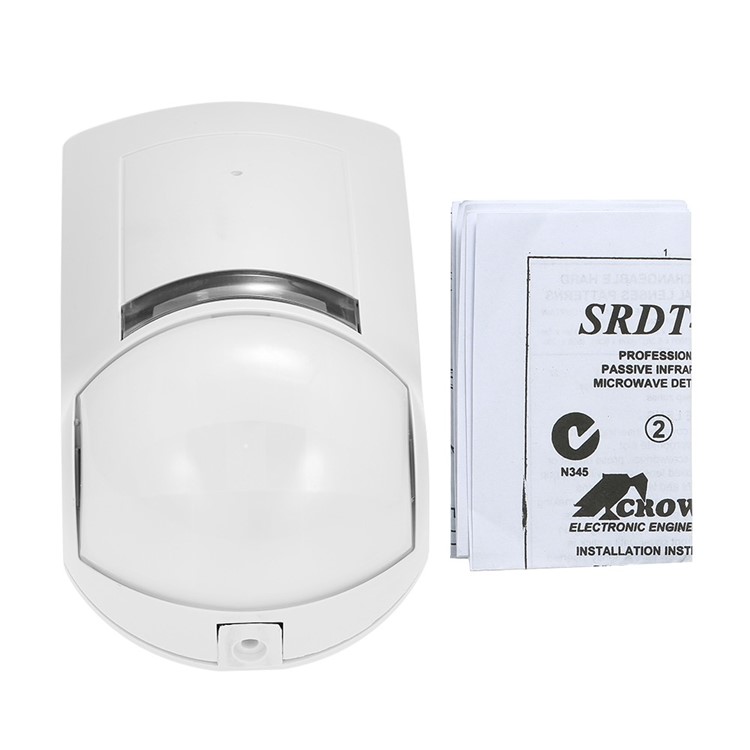

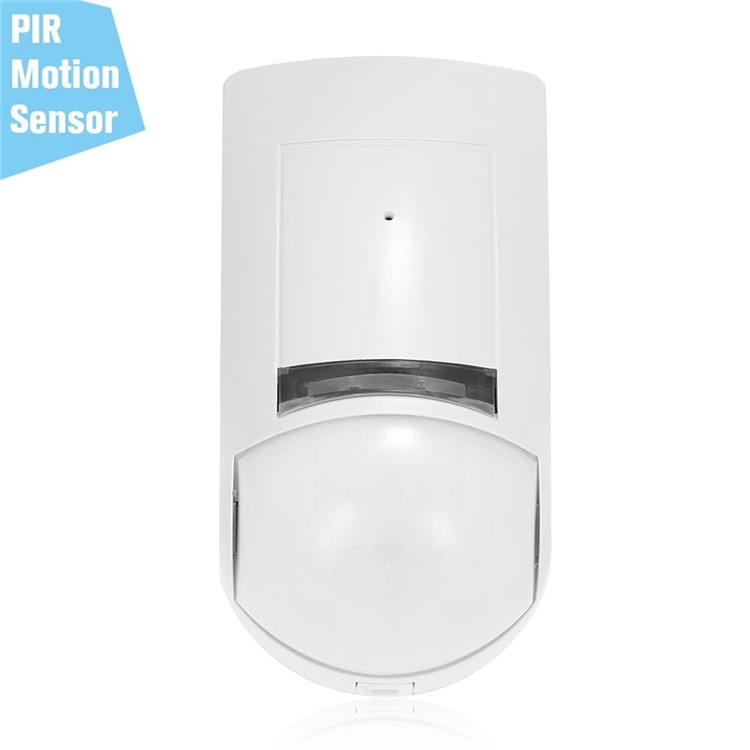

Dual Passive Infrared and Microwave Detector PIR Motion Sensor Wall Mounted Wired Alarm for Home Security Alarm – White

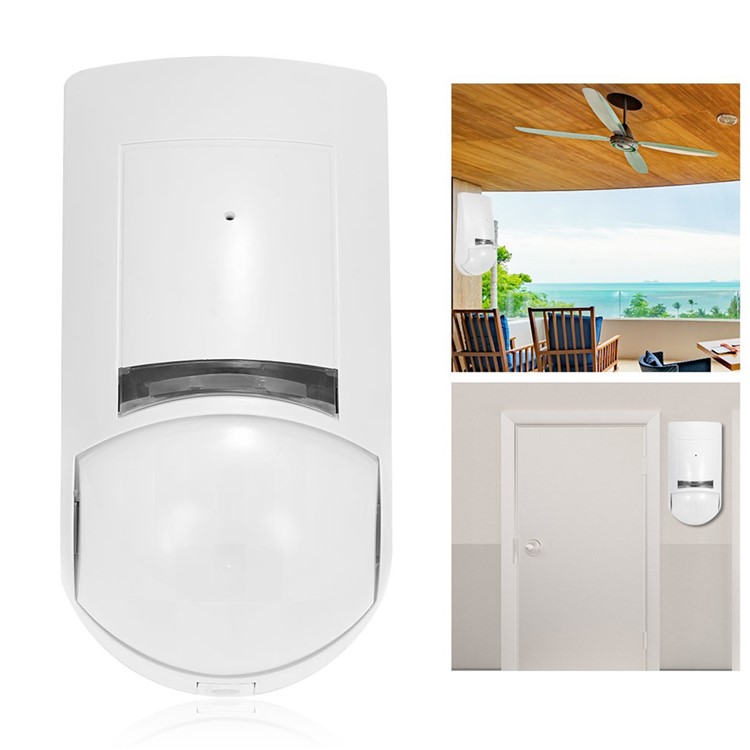

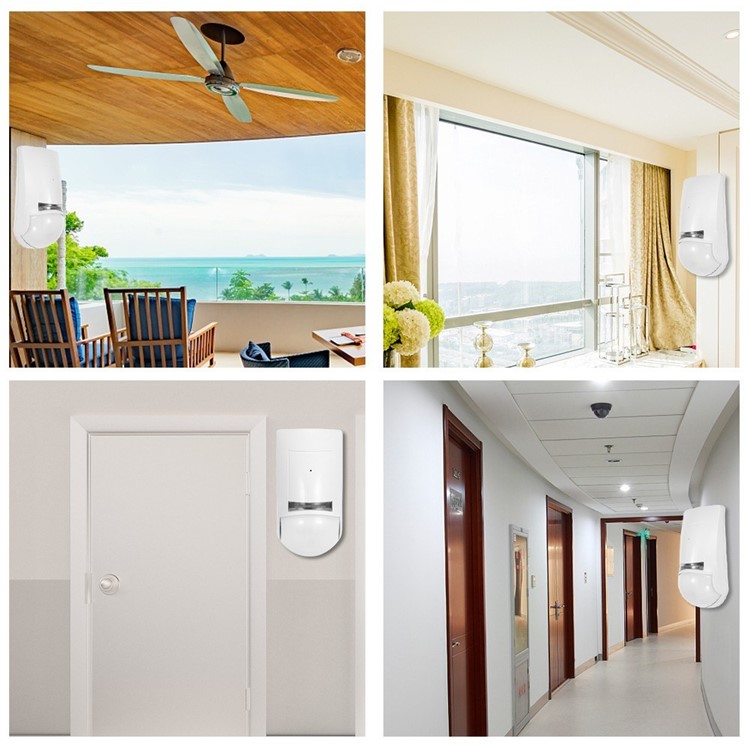

This product is a wired dual passive infrared and microwave detector, exquisite design, easy installation. Fit for the locations of the balcony, window, door, corridors, outdoor, etc. Imported high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, etc., can be integrated with wired alarm host.

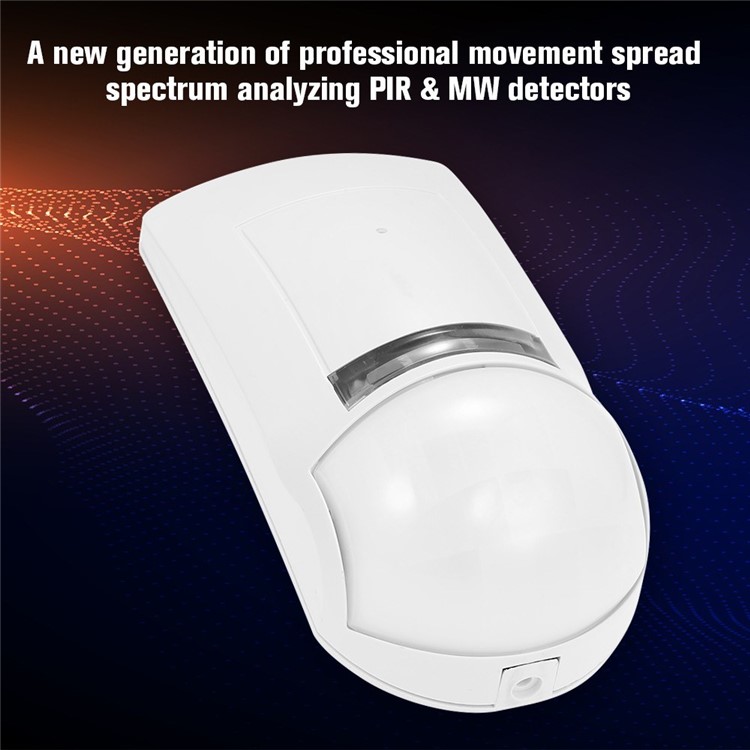

• A new generation of professional movement spread spectrum analyzing PIR & MW detectors

• Dual element PYRO sensor and hard lens for outstanding detection performance and elimination of false alarms

• Microwave detection based on Doppler concept

• Unique microwave motion sensor module with microstrip patch antenna

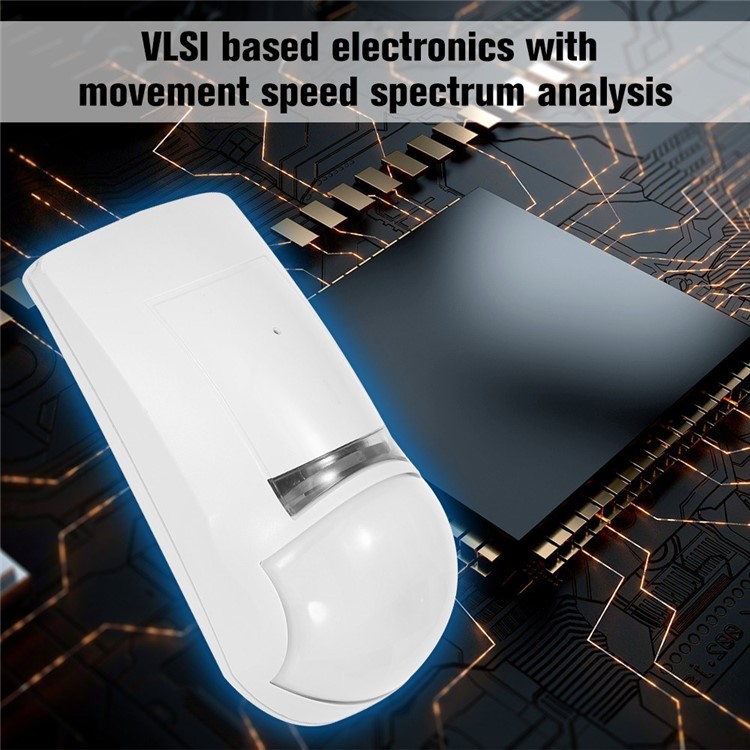

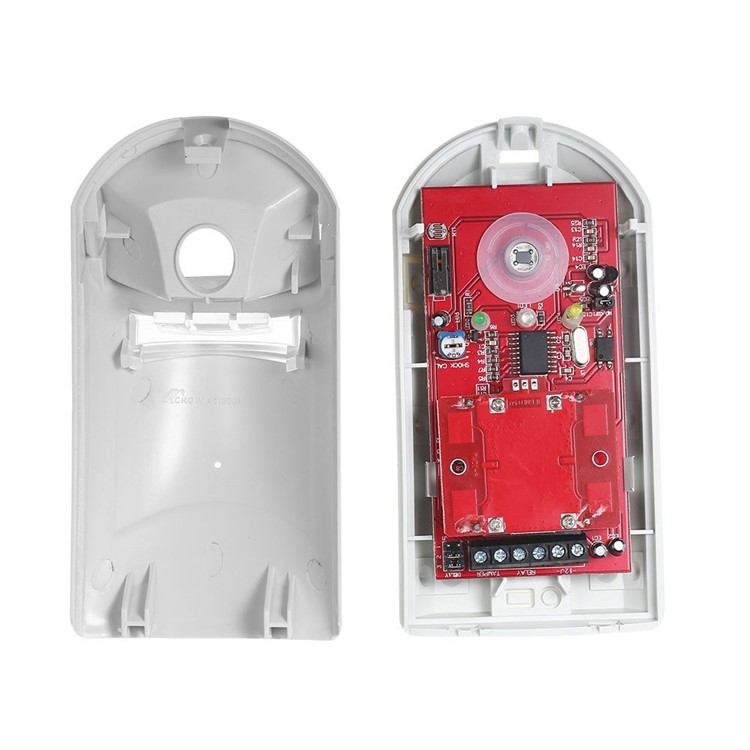

• VLSI based electronics with movement speed spectrum analysis

• AND & OR alarm signal selection

• Height installation calibrations free

• User-friendly installation with or w/o swivel bracket

• 2-way Microwave sensitivity adjustment

• 2-way PIR sensitivity adjustment

• BI directional temperature compensation

• Environmental immunity

Note: Do not mount the unit in direct sunlight or near heat sources

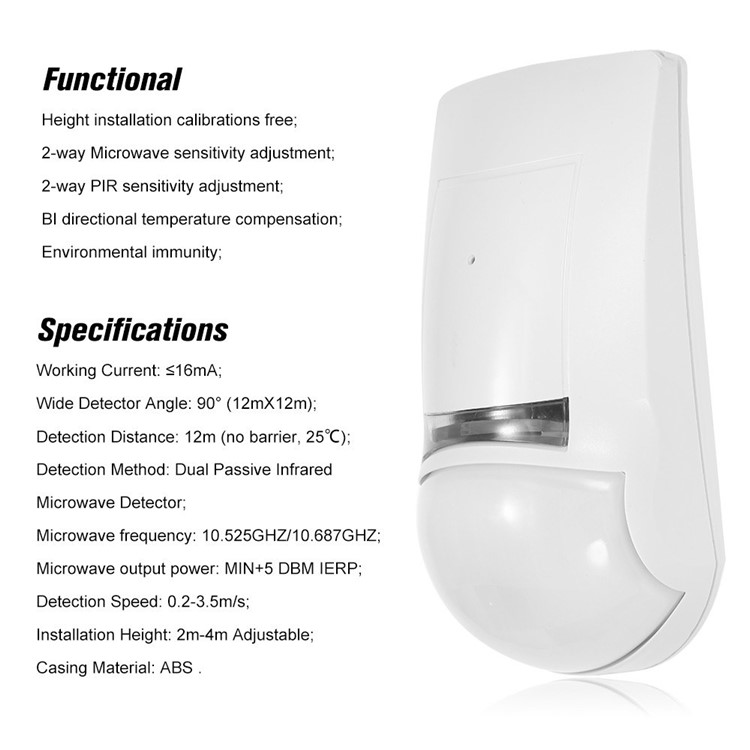

Specification:

• Working Voltage: 9V-16V

• Standby Current: 25mA

• Working Current: <=6mA

• Wide Detector Angle: 90 degrees (12x12m)

• Detection Distance: 12m (no barrier, 25 degrees Celsius)

• Detection Method: Dual Passive Infrared Microwave Detector

• Microwave frequency: 10.525GHZ/10.687GHZ

• Microwave output power: MIN+5 DBM IERP

• Anti-white light interference: >9000LUX

• Anti-RFI interference: 20V/M (20MHZ-1000MHZ)

• Anti-EMI interference: 50000V

• Alarm Output: N.C. 28V DC, 0.1A

• Anti-tamper Switch: N.C. 28V DC, 0.1A

• Detection Speed: 0.2-3.5m/s

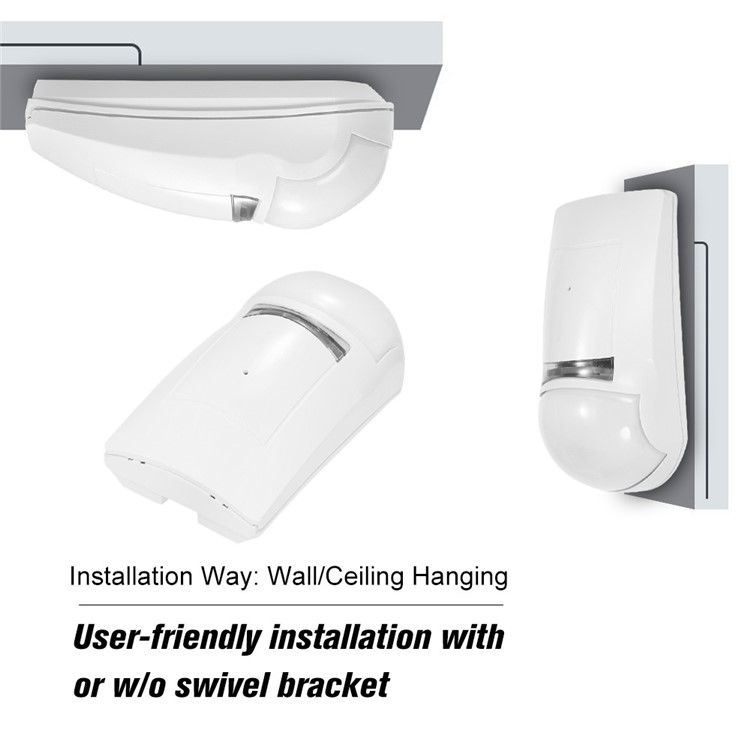

• Installation Way: Wall/Ceiling Hanging

• Installation Height: 2m-4m Adjustable

• Casing Material: ABS

• Operating temperature: -10 to 50 degrees Celsius

• Operating Humidity: 5%-95%RH, non-condensing

• Item Size: Approx. 13.5×7.2×5.3cm
