W20 HD Night Vision PIR Human Detection Security Monitoring Outdoor Aerial DV Camera

$ 29.08

Free Shipping

For just $ 29.08 , buy W20 HD Night Vision PIR Human Detection Security Monitoring Outdoor Aerial DV Camera from the wholesale webshop online.


Color Black
Retail Packaging Simple PP Bag
User Manual (Language) English
Gross Weight 0.246kg
Volume Weight 0.000kg
Package Length 2.000cm
Package Width 1.000cm
Package Height 0.500cm
Package Weight 0.220kg
With Retail Packaging No

Product Description

W20 HD Night Vision PIR Human Detection Security Monitoring Outdoor Aerial DV Camera
  • RTOS system supports fast boot-up in 2 seconds

  • PIR human body movement monitoring, without missing any suspicious scenes

  • PIR wakes up quickly in off mode, recording starting and automatically be standby after recording. Typical scenes (trigger 10 times a day and record 30 seconds each time), the camera can work for 2-3 months

  • High definition image quality

  • Intelligent working scene, which can be operated in hot spot mode, Wifi mode and off Wifi mode to maximize the power of the battery

  • Cloud storage video

  • Alarm inform, mobile phone can receive information timely

  • The App is easy to use


  • Model: W20 mini DV

  • CPU: FH8852

  • Memory: built in 64MB DDR2

  • Flash: 4MB

  • TF card maximum support: 128G

  • Operating system: RTOS

  • Audio visual input: built in microphone

  • Power adapter: DC 5V 1A

  • Charging current: 300mA

  • Maximum power consumption: 1.6W(WiFi, SD, and fill light all work)

  • Battery capacity: 122930 / 4.4V/1300mAh

  • Battery standby time: the camera can work for 2-3 months in PIR mode (trigger 10 times a day and record 30 seconds each time)

  • Infrared radiation distance: 5-8m (depending on the environment)

  • Operating temperature and humidity: "temperature: – 10 ℃ ~ + 50 ℃

  • Humidity: < 95%

  • Sensor chip: gc2053

  • Sensor type: COMS senser

  • Display resolution: 200W: 1920×1080 30fps (1080p)

  • Lens angle: 120

  • Day night conversion mode: photosensitive metering algorithm, automatic switching

  • Digital noise reduction: 3dnr

  • Wide dynamic range: 100 ~ 120dB

  • PIR distance: detection distance 5m

  • Alarm push: with alarm push function

  • PIR standby time: settable: 1 minute, 3 minutes, 5 minutes

  • Video compression standard: smart H.264

  • Encoding type: H.264 baseline / main profile encoding

  • Video compression code stream Main: 200W: 1920×1080 30fps, sub: 720 * 480 15fps

  • Audio compression standard: g.711a/u encoding and decoding standard

  • Audio transmission: recording only

  • Cloud storage: it supports cloud storage and can be purchased online

  • TF local storage: support local storage

  • Storage interface: Micro SD card

  • Power interface: Micro USB interface

  • Wireless standard: 802.11 B / g / n/

  • Frequency range: 2.4GHz ~ 2.4835ghz

  • Channel bandwidth support: 20MHz, 40MHz

  • Security: 64 / 128 bit WEP, WPA / WPA2, wpa-psk / wpa2-psk

  • Transmission rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

  • Hot spot connection distance: 20 meters maximum

  • APP:MiKa

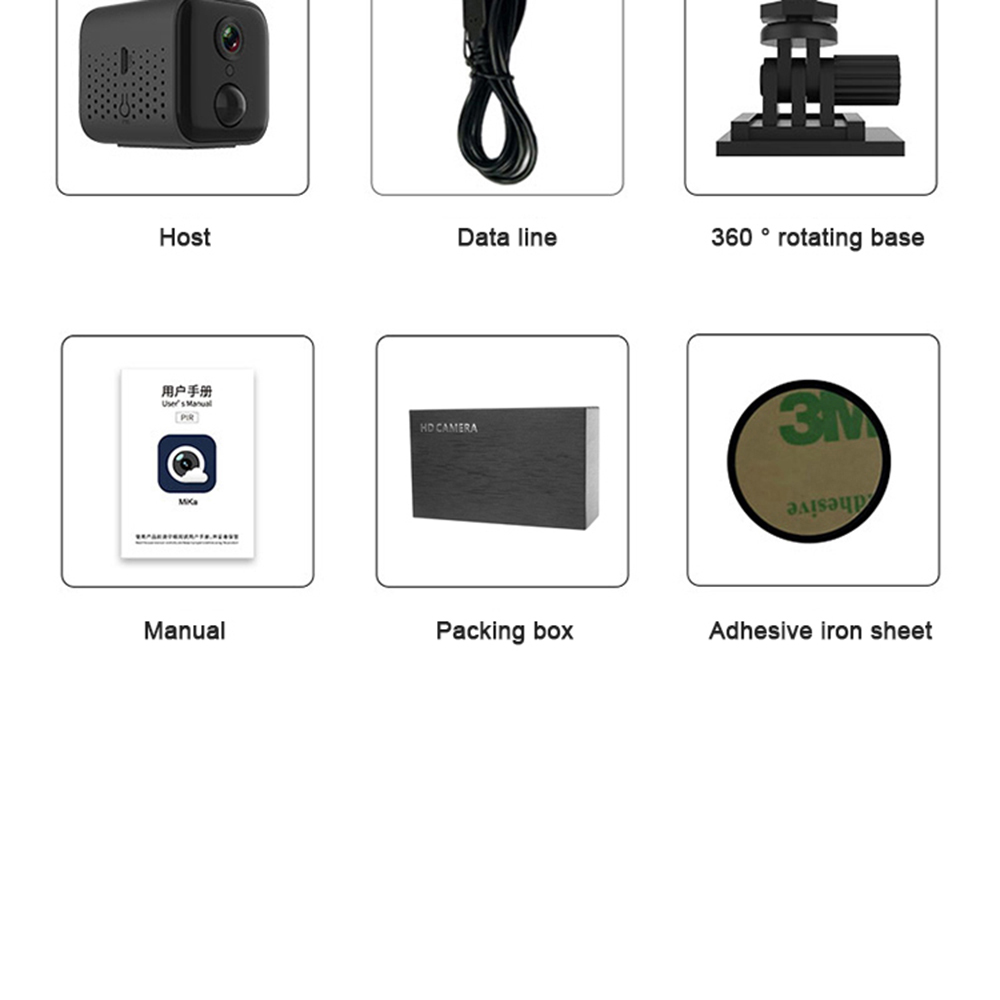

Package included:

  • 1 x W20 Camera
  • 1 x Data Cable
  • 1 x 360° Swivel Base
  • 1 x Back Glue Iron Sheet
  • 1 x Manual
