Voltage Current Power Meter USB Tester Multi-functional Voltmeter Ammeter with Fast Charging Trigger
Price:
$ 18.67
Specifications
Gross Weight | 0.054kg |
---|---|
Volume Weight | 0.047kg |
Length | 16.100cm |
Width | 7.200cm |
Height | 1.800cm |
Weight | 0.049kg |
With Retail Packaging | Yes |
Product Description

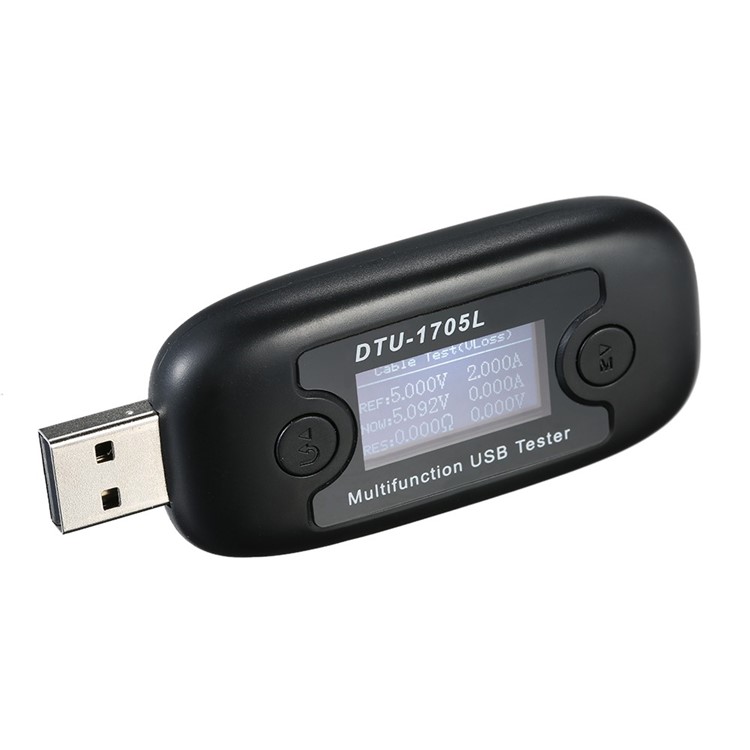

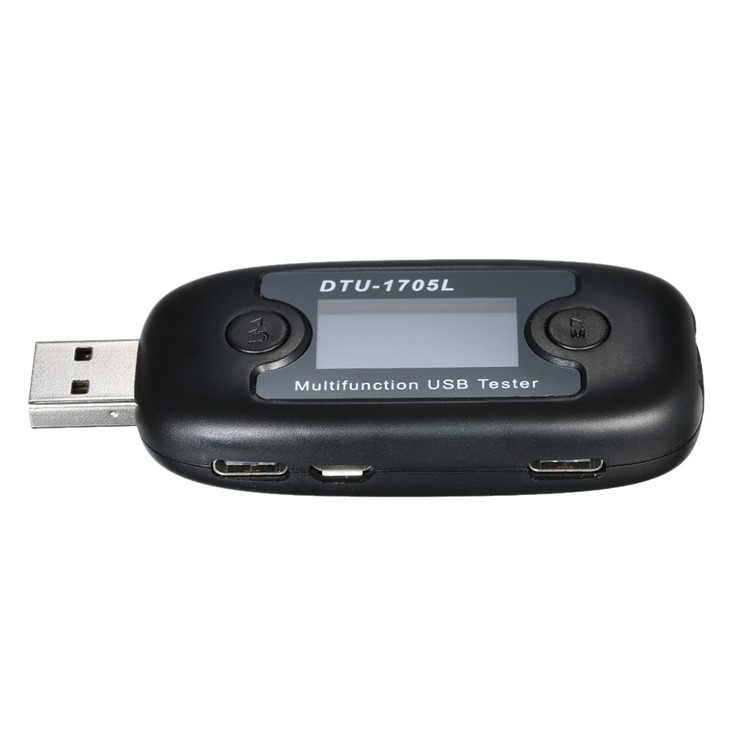

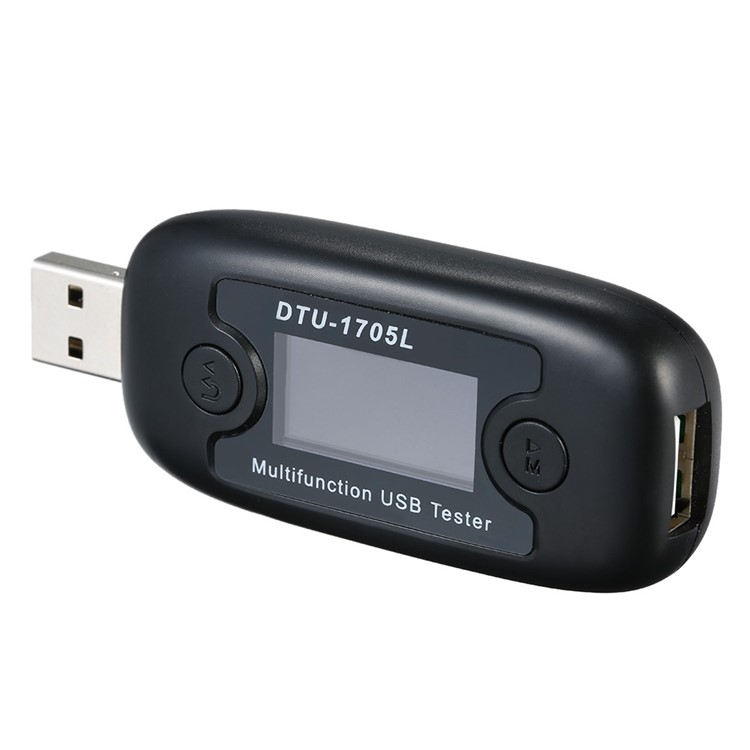

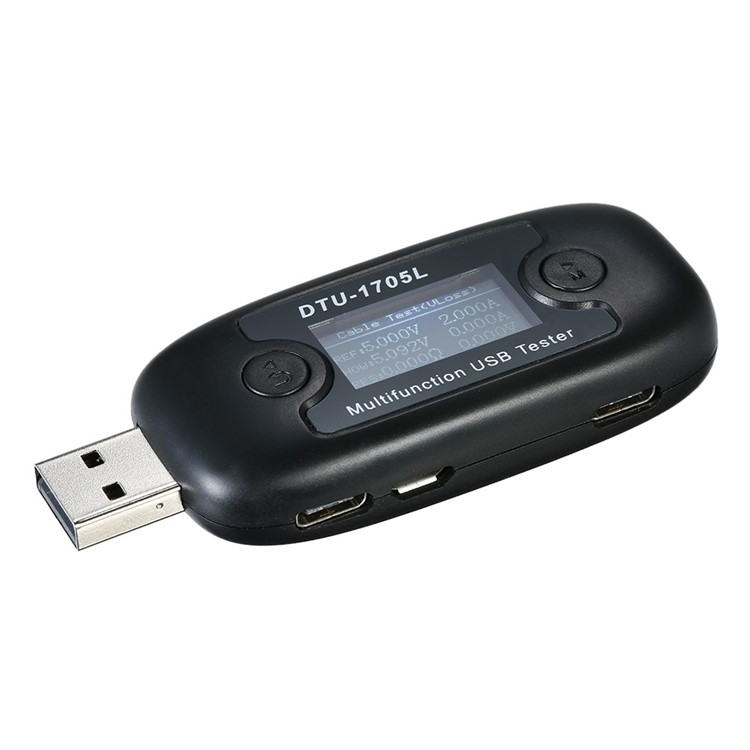

Voltage Current Power Meter USB Tester Multi-functional Voltmeter Ammeter with Fast Charging Trigger
This USB Tester can display the data of voltage/current/capacity/wire resistance, etc. It can perfectly compatible with such electronic devices as phone, computer, power bank, wall charger, car charger, notebook, etc.
-
With only two buttons for easy operation
-
LCD display to show the data of voltage/current/capacity/wire resistance clearly
-
Includes data logging function
-
Built-in Input Interface: USB-A, TYPE-C, Micro USB
-
Compact and portable design, convenient to carry
-
Wide Testing Range: Input Voltage: 4V~30V; Input Current: 0~5A
-
Perfectly compatible with such electronic devices as phone, computer, power bank, wall charger, car charger, notebook, etc
Note:
-
Please do not use it over 30V, or it will be destroyed
-
Please do not reverse power supply, or the meter will be damaged
-
When the output is off or current is less than 0.001A, the energy counter stop recording
Specification:
-
Material: ABS
-
Display: 128 * 64
-
Input Voltage: 4V~30V
-
Input Current: 0~5A
-
Voltage Resolution: 0.001V(1mV)
-
Current Resolution: 0.001A(1mA)
-
Voltage Accuracy: ±(0.2%+2d)
-
Current Accuracy: ±(0.3%+2d)
-
Power Consumption: 6~10mA
-
Capacity Counter: 0~9999.9Ah(Resolution 0.0001Ah)
-
Power Counter: 0~9999.9Wh(Resolution 0.0001Wh)
-
Input Interface: USB-A, TYPE-C, Micro USB
-
Logger Capacity: 100 Group(Loop logging)
-
Log Rate: 0~60mins
-
Protocol Trigger: for QC2.0, QC3.0, Apple, HuaWei, Samsung
-
Protocol Auto Test: Support
-
Item Size: Approx. 8.2×3.3cm / 3.23×1.30in
Package included:
- 1 x USB Tester
- 1 x English User Manual
