V02H2-1 V2.1 BT 2.0 Interface OBDII Car Diagnostic Scanner Code Reader Tool for Android
Price:
$ 3.80
Specifications
| Gross Weight | 0.061kg |
|---|---|
| Volume Weight | 0.036kg |
| Package Length | 10.000cm |
| Package Width | 6.500cm |
| Package Height | 2.500cm |
| Package Weight | 0.055kg |
| With Retail Packaging | No |
Product Description
V02H2-1 V2.1 BT 2.0 Interface OBDII Car Diagnostic Scanner Code Reader Tool for Android
-
Hardware: V1.5, software : V2.1
-
High compatibility, support app
-
Connection type: by BT
-
Paired password: 0000 or 1234
-
Supported System: Android, Windows
Supported Protocol:
-
SAE J1850 PWM (41.6Kbaud)
-
SAE J1850 VPW (10.4Kbaud)
-
ISO9141-2(5 baud init, 10.4Kbaud)
-
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
-
ISO14230-4 KWP (fast init, 10.4 Kbaud)
-
ISO15765-4 CAN (11bit ID, 500 Kbaud)
-
ISO15765-4 CAN (29bit ID, 500 Kbaud)
-
ISO15765-4 CAN (11bit ID, 250 Kbaud)
-
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible software:
-
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN
-

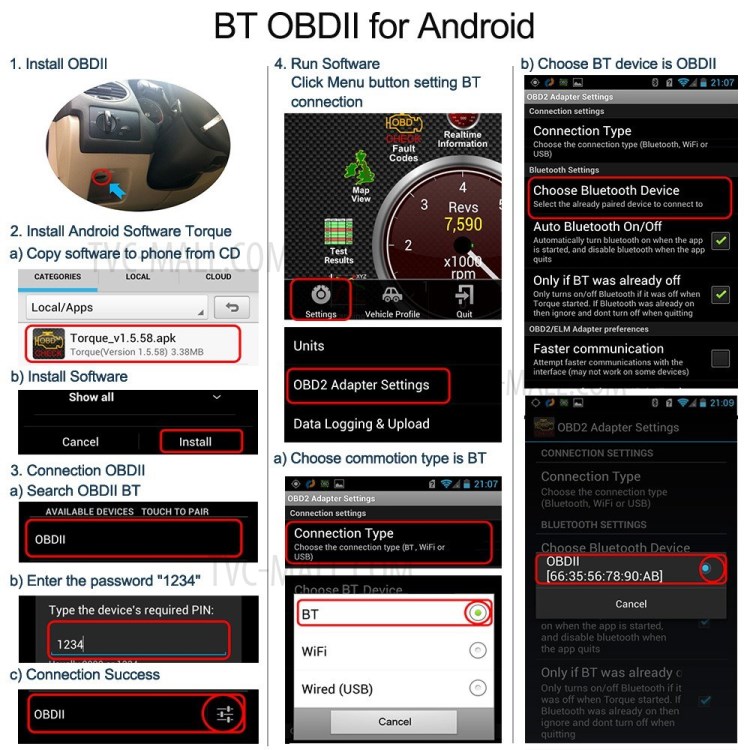

Android version: Torque, OBD Car Doctor, Mini OBD, DashCommand, EOBD
-
Symbian version: OBDScope
Specifications:
-
Operating Voltage:9V-16V
-
Working current: 35mA
-
Operating temperature: -40-85℃
-

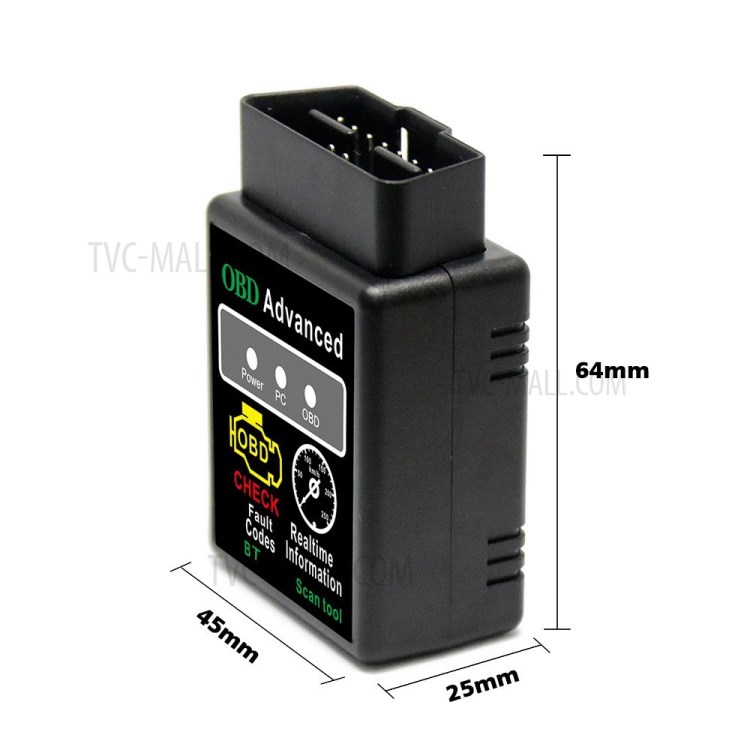

Product size: 6.5 * 4.5 * 2.5cm
Package included:
- 1 x OBDII Diagnostic Scanner
