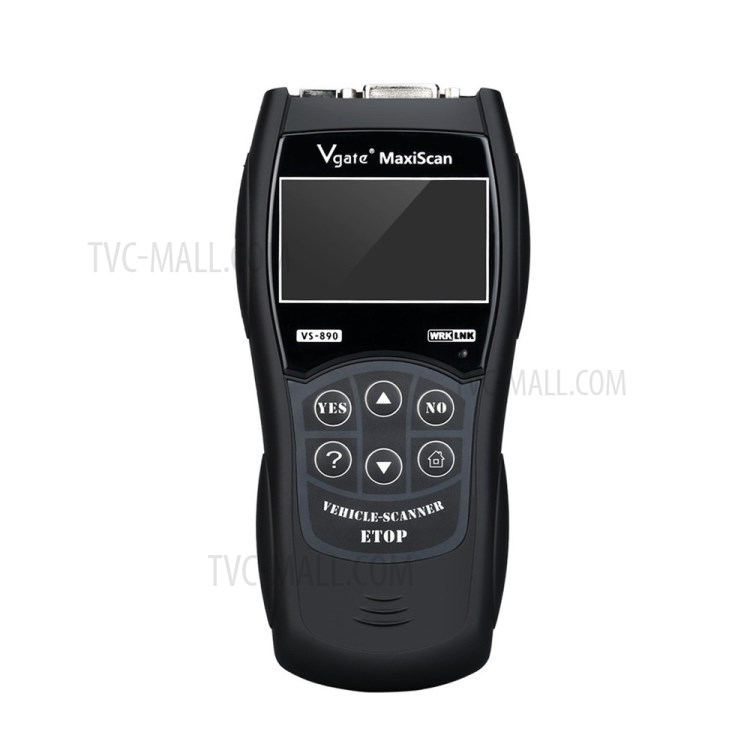

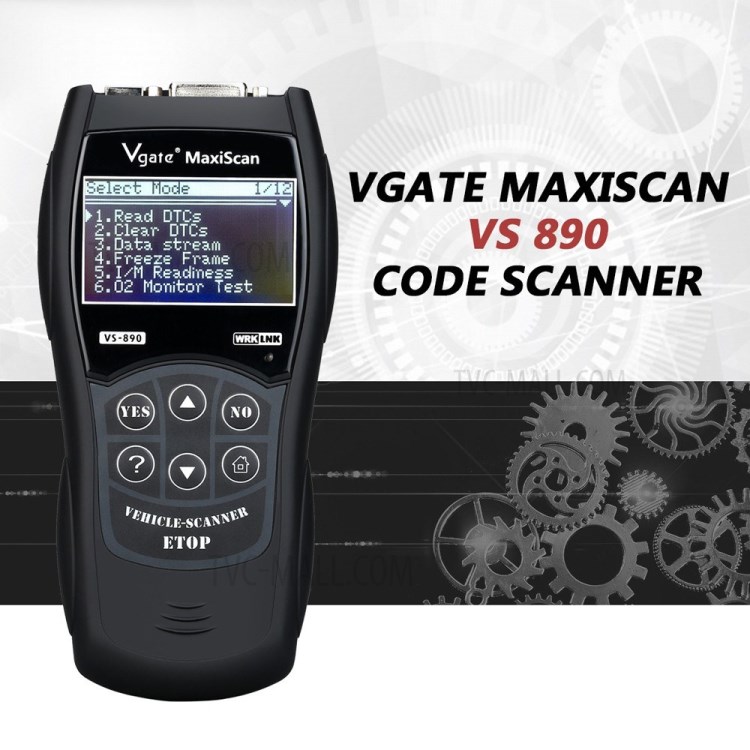

Universal Car Fault Reader Code Auto Scanner Multi-language Vehicle Diagnostic Tool OBD2 CAN Reset Tool

• The scan tool is multi-language user interface, supports up to 13 languages. Application layer fully complies with ISO 15031 and is compliant with SAE J1979. Supports a large number of vehicles made by 70 manufacturers.

• LCD: 3 inch black mask LCD, wide visible area, high contrast. The contents is readable even in strong sun shine

• ABS + PC engineer plastic housing (passed 6-meter free fall test)

• Harmless fade-resistant paint

• Rubber oil sprayed housing, which is slide, dirty, and vibration proof

• Fine quality PET 6-key film keypad

• Passed EMI/EMC test

• Support manually input DTC Look-up

• Up to 161 data items, each of them is with online help information

• This operation will erase all DTCs, freeze frame Data, oxygen sensor data, and reset IM monitors and MIL

• Read: All DTCs, stored DTCs and pending DTCs

• Capable of showing probable cause of a DTCs

• Detailed help information

Specifications:

• Material: ABS

• Supported protocol:

                     SAE J1850 PWM

                     SAE J1850 VPW

                     ISO9141

                     KWP FAST INIT

                     KWP 5BAUD INIT

                     CAN 11BIT 500K

                     CAN 29BIT 500K

                     CAN 11BIT 250K

                     CAN 29BIT 250K

                     CAN_USER1 11B 125K

                     CAN_USER1 29B 125K

                     CAN_USER2 11B 50K

                     CAN_USER2 29B 50K

• Languages:

• Spanish, Portuguese, Korean, Japanese, Italian, Hebrew, German, French, Finnish, English, Dutch, Danish and Chinese

• Item size: 65 x 20 x 20mm / 2.6 x 0.8 x 0.8in

• Item weight: 670g / 1.5lb
