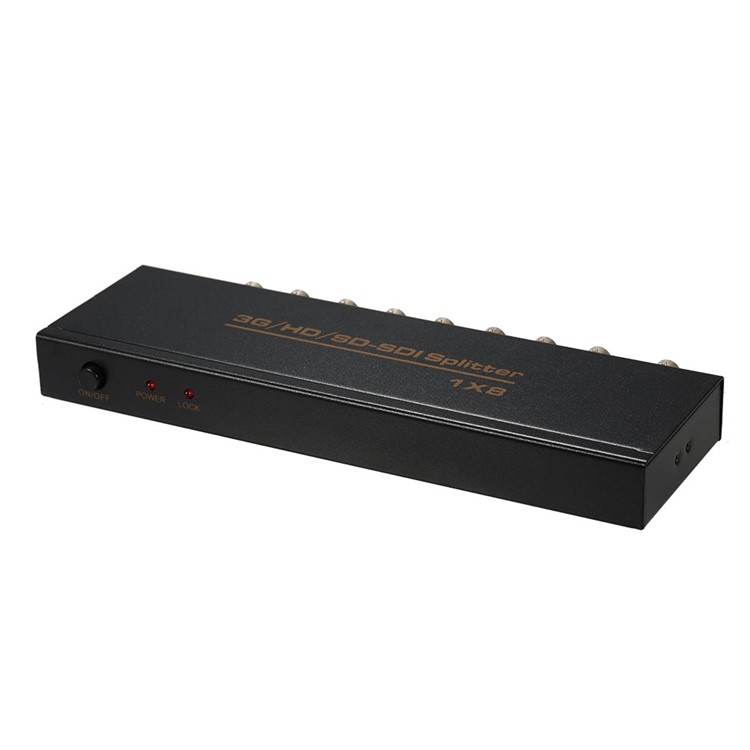

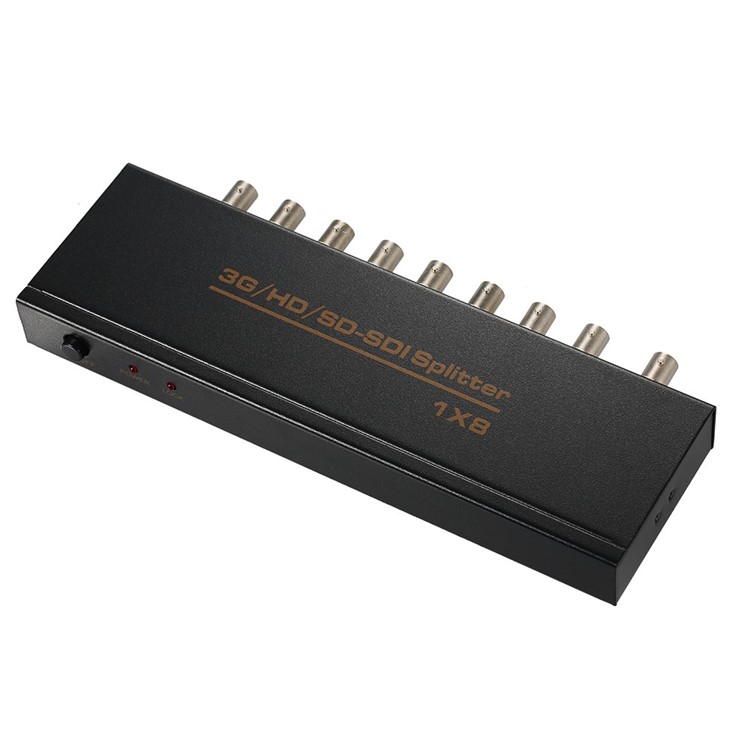

SDI Splitter 1 * 8 Supports SD-SDI/HD-SDI/3G-SDI (1 Input and 8 Outputs)

1 * 8 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI,HD-SDI,3G-SDI all formats of SDI signal.

• 1 SDI input signal split 8 SDI sink devices

• Support SD-SDI（270Mb/s）, HD-SDI（1.485Gb/s），3G-SDI（2.975Gb/s）video format

• Built-in cable equilibrium, clock recovery and drive

• Support resolution up to 1920 * 1080@60HZ

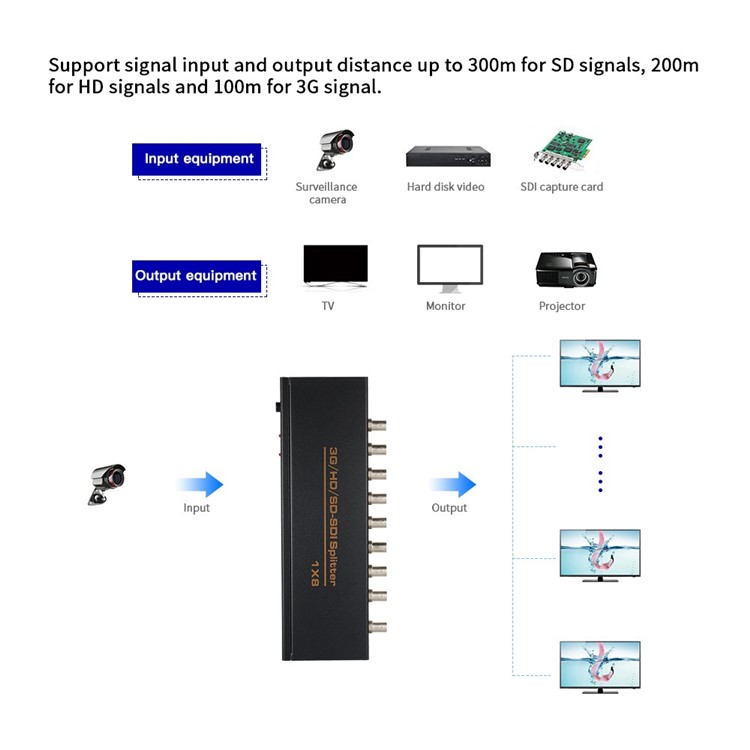

• Support signal input and output distance up to 300m for SD signals, 200m for HD signals and 100m for 3G signal

Specification:

• Frequency Bandwidth: 3Gbps

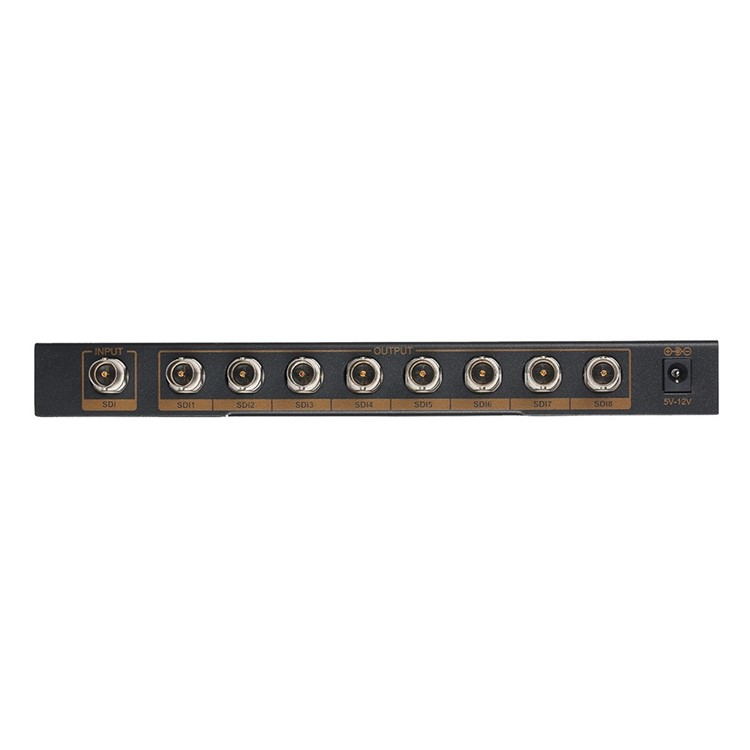

• SDI Splitter Input Port: 1 * BNC Female input port

• SDI Splitter Output Port: 8 * BNC Female output port

• ESD Protection Human Body Model: ±8kV （air-gap discharge）±4kV （contact discharge）

• Operating Temperature: 0℃-40℃

• Storage Temperature: -20℃-60℃

• Item Size: 23x7x2.3cm / 9.06×2.76×0.91in

• Item Weight: 437.5g / 15.43oz
