MG-021 IP66 Waterproof Outdoor Antenna High Gain WiFi GSM 2G 3G 4GLTE Mini Omnidirectional Screw-Mount Antenna for Open-air Equipment Base Station Mobile Facility Cabinet Security

Price:
$ 3.10

Free Shipping

For just $ 3.10 , buy MG-021 IP66 Waterproof Outdoor Antenna High Gain WiFi GSM 2G 3G 4GLTE Mini Omnidirectional Screw-Mount Antenna for Open-air Equipment Base Station Mobile Facility Cabinet Security from the wholesale webshop online.

Specifications

Gross Weight 0.061kg
Volume Weight 0.075kg
Length 12.000cm
Width 7.000cm
Height 4.000cm
Weight 0.055kg
With Retail Packaging No

Product Description

MG-021 IP66 Waterproof Outdoor Antenna High Gain WiFi GSM 2G 3G 4GLTE Mini Omnidirectional Screw-Mount Antenna for Open-air Equipment Base Station Mobile Facility Cabinet Security

This cap-shaped fixed omnidirectional antenna provides 3dBi of gain for GSM/2G/3G/4GLTE networks. It is designed for open-air equipment such as advertising machines, vending machines, instrument enclosures, equipment sheds or other locations that require inconspicuous thin external antennas. It can also be installed on buses, trucks or other mobile facilities. Mainly used in base station, mobile facility and for cabinet security.  IP66 protection makes it fully protect against dust and splashing water for 3 minutes from a distance of 3 meters. It allows you to use normally under rain and damp conditions. Mounted through a 12mm (0.47 inch) hole with a locking inner nut. Make the antenna durable and work stable. And it can be widely used for 2.4G WiFi/ 2G/ 3G/ 4G antennas and other devices with SMA female connector such as modems, routers, etc. Plus, it is made of ABS and TPE material, the performance is more stable, to prevent vandalism, no exposed coaxial cable. 1.2-meter long line makes it easy to change the position of the antenna to achieve better signal reception effect.

  • This cap-shaped fixed omnidirectional antenna provides 3dBi of gain for GSM/2G/3G/4GLTE networks

  • Designed for open-air equipment such as advertising machines, vending machines, instrument enclosures, equipment sheds or other locations that require inconspicuous thin external antennas. It can also be installed on buses, trucks or other mobile facilities. Mainly used in base station, mobile facility and for cabinet security

  • IP66 protection makes it fully protect against dust and splashing water for 3 minutes from a distance of 3 meters. It allows you to use normally under rain and damp conditions

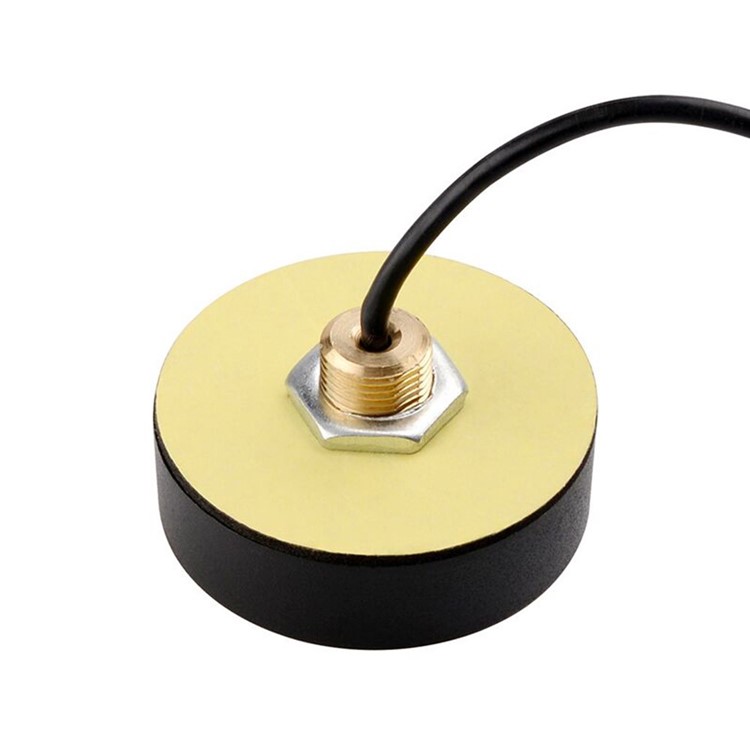

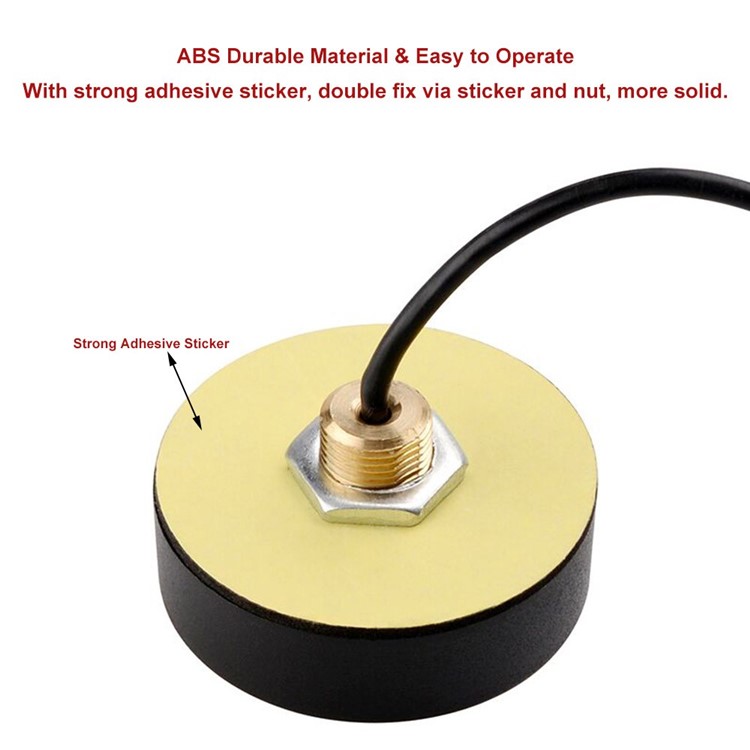

  • Mounted through a 12mm (0.47 inch) hole with a locking inner nut. Make the antenna durable and work stable

  • Made of ABS and TPE material, the performance is more stable, to prevent vandalism, no exposed coaxial cable

  • 1.2-meter long line makes it easy to change the position of the antenna to achieve better signal reception effect

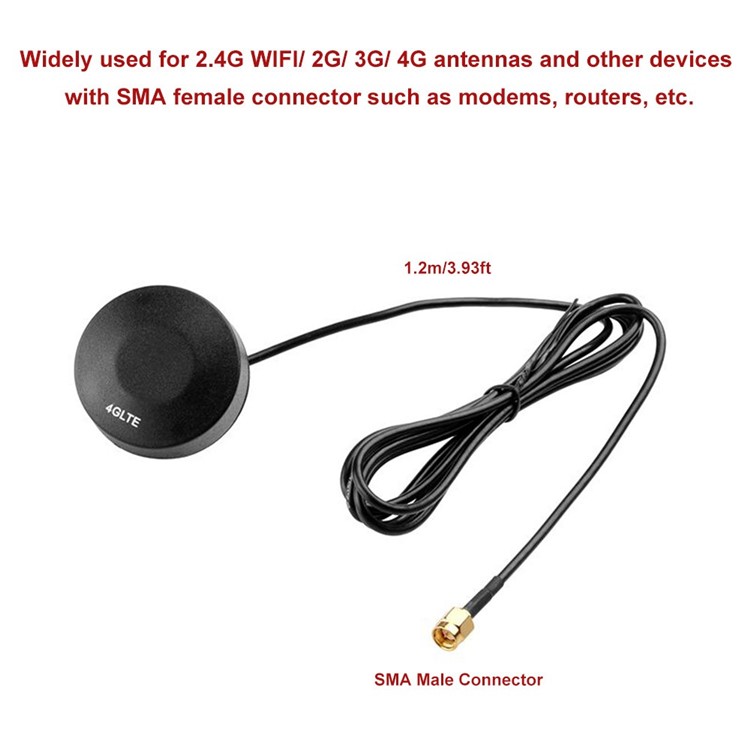

  • It can be widely used for 2.4G WiFi/ 2G/ 3G/ 4G antennas and other devices with SMA female connector such as modems, routers, etc

Specifications:

  • Model Number: MG-021

  • Frequency: 698-2700MHz

  • Gain: 3dBi

  • SWR: ≤1.5

  • Impedance: 50Ω

  • Power: 50W

  • Cable Material: RG174

  • Material: TPE + ABS

  • Cable Length: 1.2m/3.93ft

  • Interface: SMA Male Connector Male Pin

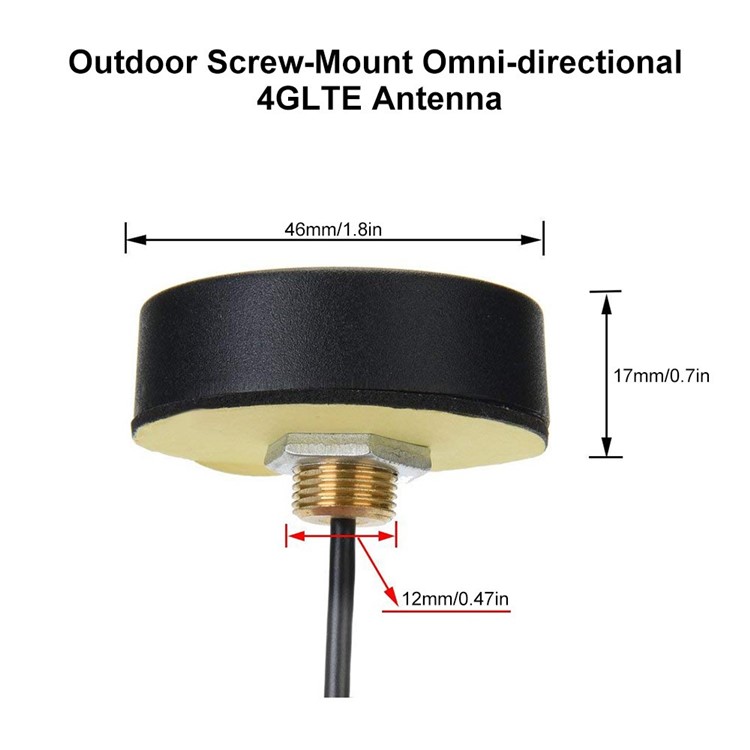

  • Thrust Size: 12*9mm/0.47*0.35in

  • Item Size: 46*46*17mm/1.81*1.81*0.66in

  • Item Weight: 61.3g/2.16oz

Package included:

  • 1 x Antenna
