ESCAM PVR602 8CH POE NVR HD 3MP Security System – EU Plug
Price:
$ 187.00
Specifications
Plug | EU Plug |
---|---|
Retail Packaging | Paper Box |
User Manual (Language) | English and Chinese |
Gross Weight | 7.224kg |
Volume Weight | 6.057kg |
Package Length | 34.500cm |
Package Width | 27.500cm |
Package Height | 28.500cm |
Package Weight | 6.450kg |
With Retail Packaging | Yes |
Product Description

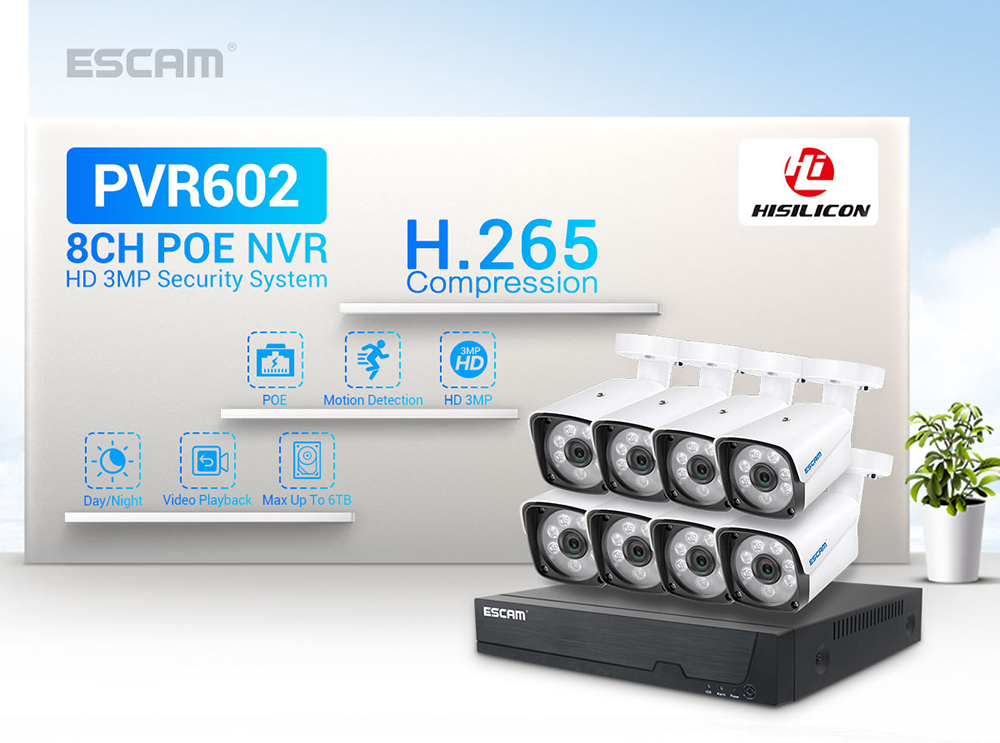

ESCAM PVR602 8CH POE NVR HD 3MP Security System – EU Plug
-
H.265 compression, ensured us more clear image quality but less bit rate, saves much transmit and storage cost, saves up to 50% more storage space for your HDD than H.264
-
Day/Night HD 3MP resolution, it can stream 3MP FHD footage onto tour mobile devices with superior quality. Smart infrared night vision covers up to 50ft/15m, allow us to see things clearly in the dark
-
Featuring POE(Power over Ethernet), with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission. Very easy installation, even for a beginner.
-
Support motion detection, while detect the moving object, the alarm message will be sent to the smartphone
-

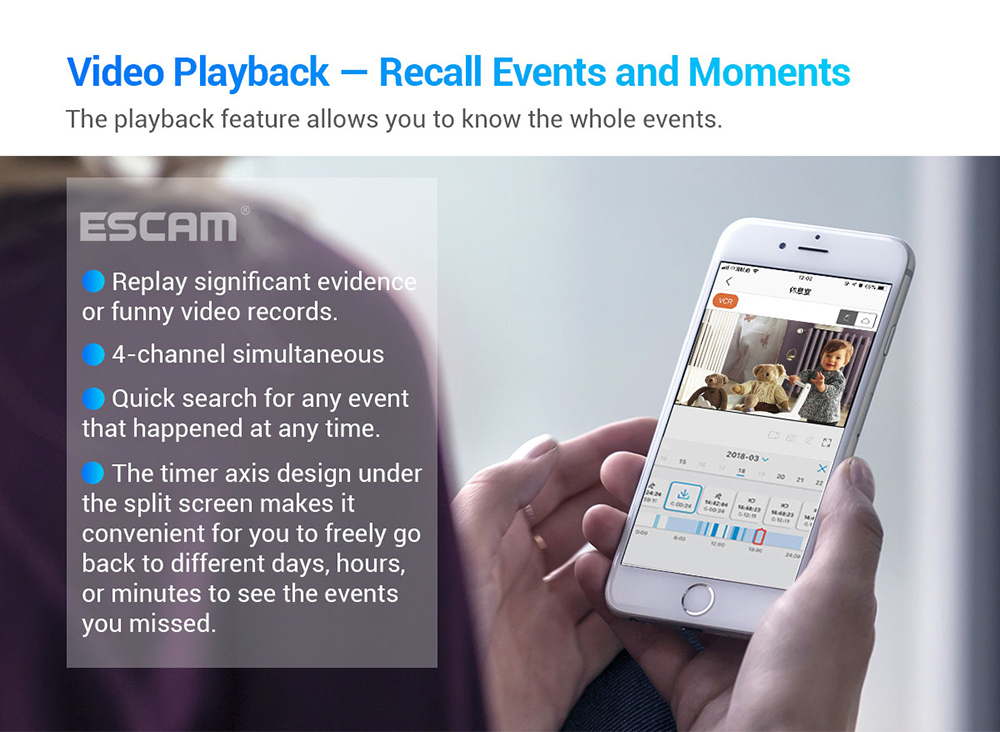

Video playback allows you to recall events and moments at any time
-

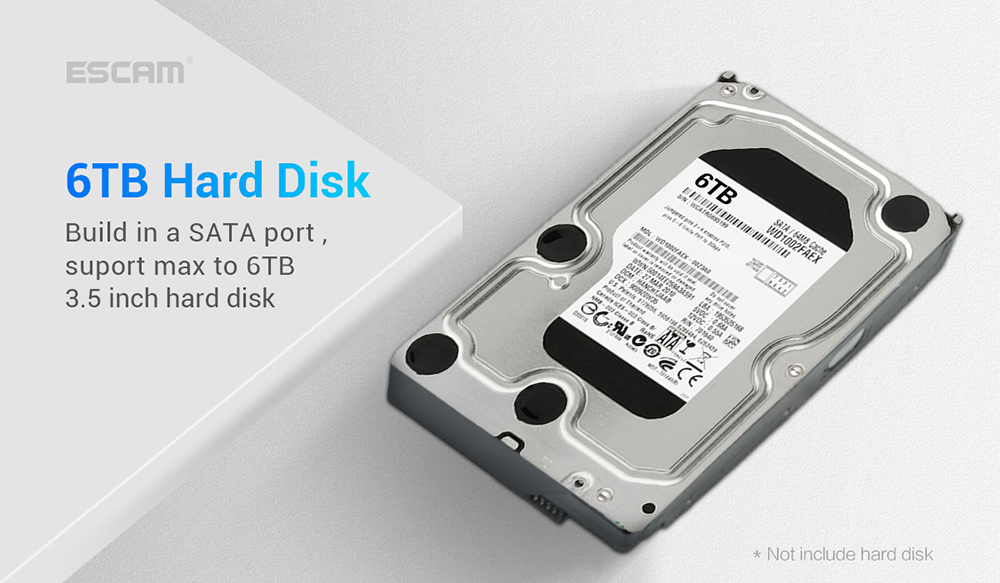

Built-in a SATA port, support max to 6TB 3.5-inch hard disk
Specification:
Camera Parameter | |||
Camera | Image Sensor | 1/2.5"; CMOS | |
Effective Pixels | 3MP | ||
Lens | 3.6mm | ||
Angle of View | Horizontal: 80°, Vertical: 58° | ||
Day/Night Mode | Auto Switchover | ||
Min. Illumination | 0.1Lux/F1.2(Color); 0.01Lux/F1.2(B/W) | ||
IR Distance | 15m(50 ft) | ||
Backlight Compensation | Support | ||
DWDR | Support | ||
Video | Compression | H.265/H.264 | |
Resolution | Main Stream:1920*1080(1080P), 1280*720(720P) | ||
Sub Stream: 800*448(448P), 704*576(D1), 640*360(360P), 352*288(CIF) | |||
Bit rate | 64 Kbps~ 12Mbps | ||
Frame Rate | 25fps | ||
Audio | Interface | Not support | |
Network | Interface | One 10M/100Mbps RJ45 | |
Network Protocol | HTTP, TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol | ||
Browser Supported | IE browser | ||
OS Supported | PC: Windows; Smart Phone: iOS, Android | ||
Onvif | Support | ||
General | Power Supply | DC12V & PoE (IEEE 802.3at) | |
Power Consumption | <6W | ||
Working Environment | -30℃~+55℃(14°F~131°F), 10%~90% | ||
Ingress Protection | IP66 | ||

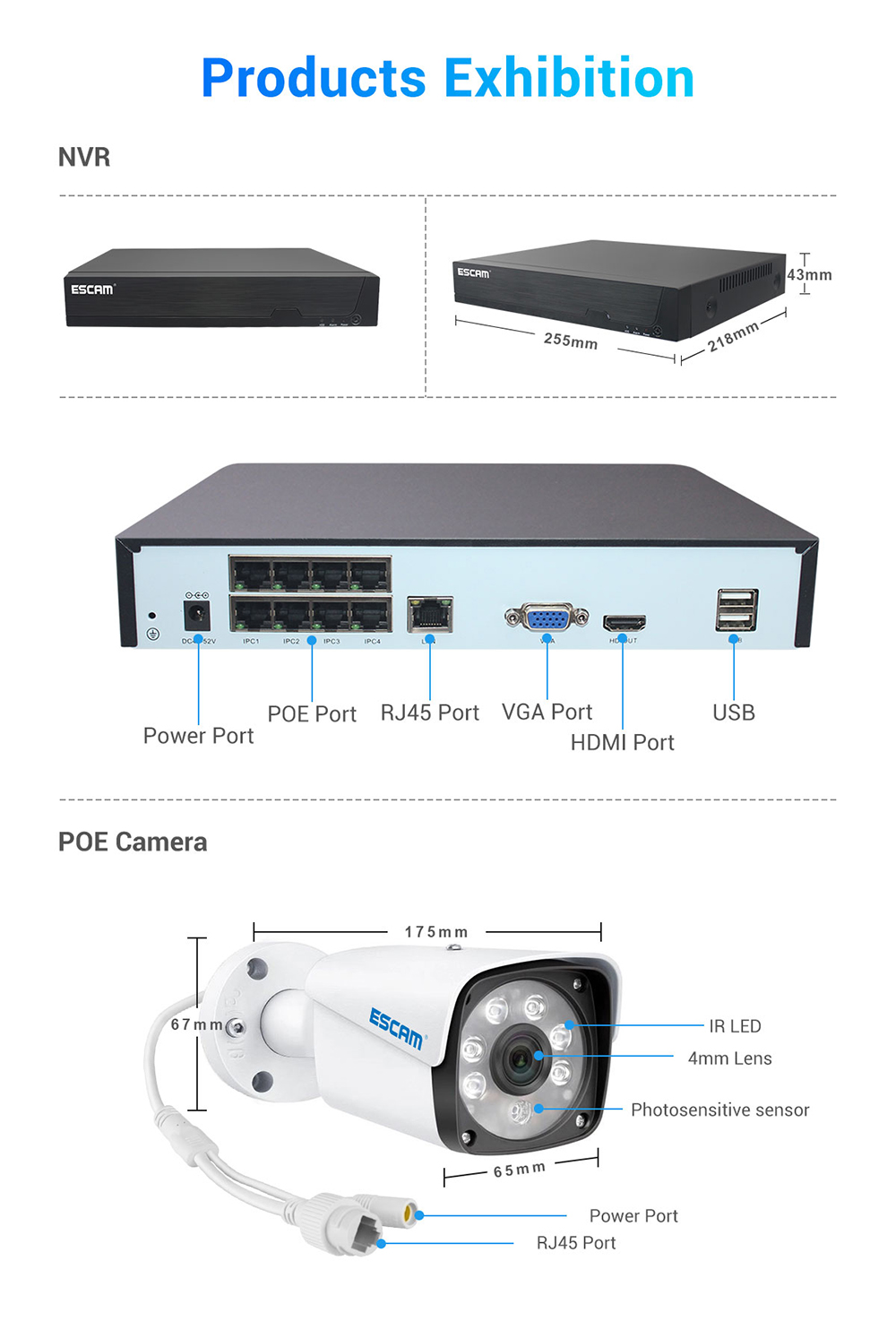

Dimensions | 175*67*65mm | ||
Weight | 0.25KG | ||
NVR Parameter | |||
Syetem | GUI | 16-Bit menu interface | |
Operating System | Embedded Linux OS | ||
A/V Input | Video Input | 8 x PoE IP Camera | |
Audio Input | Not support | ||
A/V Output | VGA Output | 1024*768, 1366*768, 1280*1024, 1920*1080 (1080P) | |
HDMI Output | 1024*768, 1366*768, 1280*1024, 1920*1080 (1080P) | ||
Audio Output | Not support | ||
Playback Resolution | 1080P/720P | ||
Synchronous Playback | 1 Channel | ||
HDD | Interface Type | 1 SATA Interface | |
Maximum Capacity | 6TB | ||
External Interface | USB Connector | 2 x USB 2.0 | |
Network Interface | One 10M/100M Ethernet RJ45 port, Four Network POE Ports for IP Cameras | ||
Network | Network Protocol | HTTP, TCP/IP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol | |
Mobile Device | iPhone, Android Smartphones | ||
Remote Software | App, PC Client (Windows) | ||
Onvif | Support | ||
General | Power Supply | Input 110~260V, 52V 1.8A | |
Consumption | <20W without PoE Cameras | ||
Working Environment | -10°C~+45°C (14°F~113°F),10%~90% | ||
Dimension | 255*218*43mm | ||
Weight | 0.75kg |

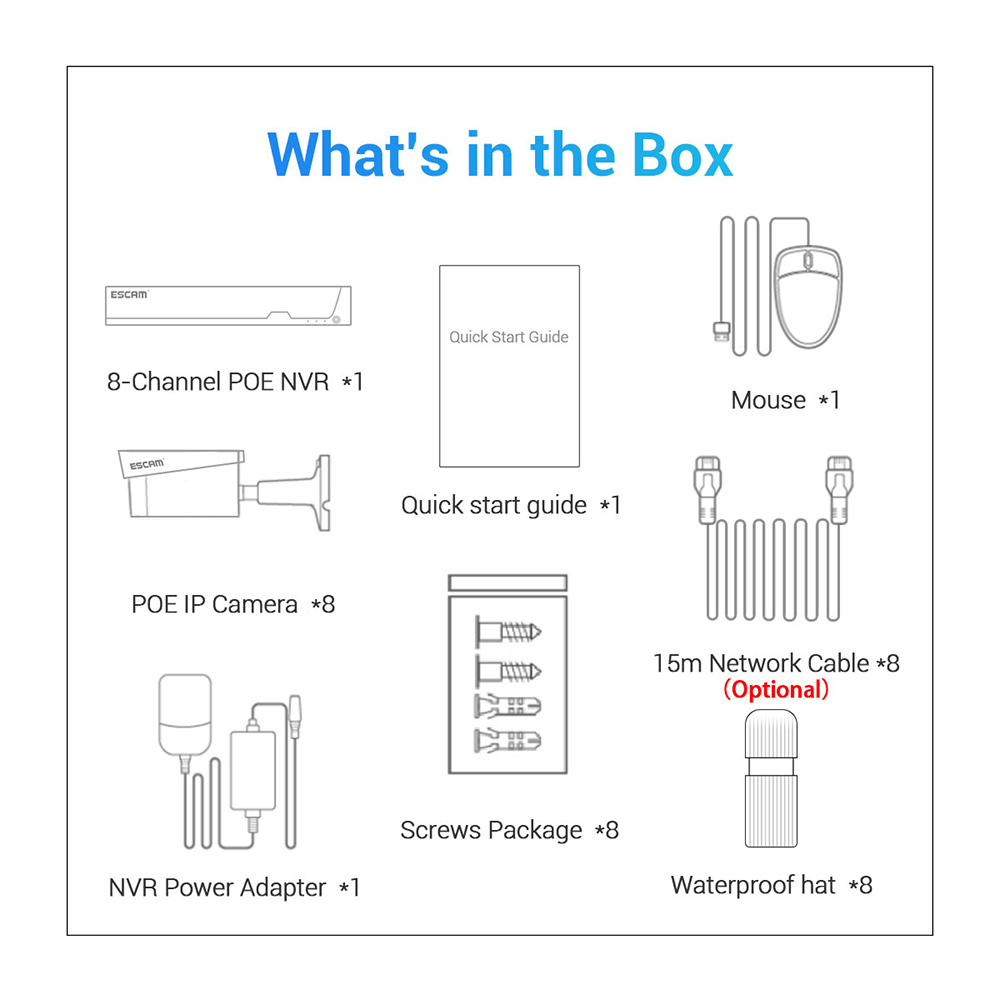

Package included:
- 1 x 8-Channel POE NVR
- 1 x Mouse
- 8 x POE IP Cameras
- 8 X Screws
- 8 X 15m Network Cables
- 1 X NVR Power Adapter
- 8 x Waterproof Hats
- 1 x English and Chinese User Manual
- Other items not included
