ESCAM PNK001 1080P 8CH WiFi NVR Kit with 8 x 2.0MP Outdoor IP Cameras – EU Plug
Price:
$ 235.03
Free Shipping
For just $ 235.03 , buy ESCAM PNK001 1080P 8CH WiFi NVR Kit with 8 x 2.0MP Outdoor IP Cameras – EU Plug from the wholesale webshop online.
Specifications
Product Description
Specifications
| Brand | Escam |
|---|---|
| Certificate | CE, FCC, RoHS |
| Home Safety Type | NVR Kits |
| Plug | EU Plug |
| Retail Packaging | Colored Box |
| User Manual (Language) | English and Chinese |
| Gross Weight | 8.960kg |
| Volume Weight | 6.333kg |
| Length | 38.000cm |
| Width | 31.000cm |
| Height | 24.000cm |
| Weight | 8.000kg |
| With Retail Packaging | Yes |
Product Description
ESCAM PNK001 1080P 8CH WiFi NVR Kit with 8 x 2.0MP Outdoor IP Cameras – EU Plug
-
High performance H.265 compression technology
-
Dual stream network transmission, for a variety of network environments
-
1/2.7" CMOS 2.0MP 1080P camera
-
Applicable to schools, airports, factories, hotels, museums, traffic monitoring, etc.
Specifications:
| Model | ESCAM PNK001 | ||
| Camera Parameter | |||
| Camera | Image Sensor | 1/2.7" CMOS | |
| Effective Pixels | 1920*1080(2MP) | ||
| Lens | 4mm | ||
| Angle of View | Horizontal: 80°, Vertical: 58° | ||
| Day/Night Mode | Auto Switchover | ||
| Min. Illumination | 0.1Lux/F1.2(Color); 0.01Lux/F1.2(B/W) | ||

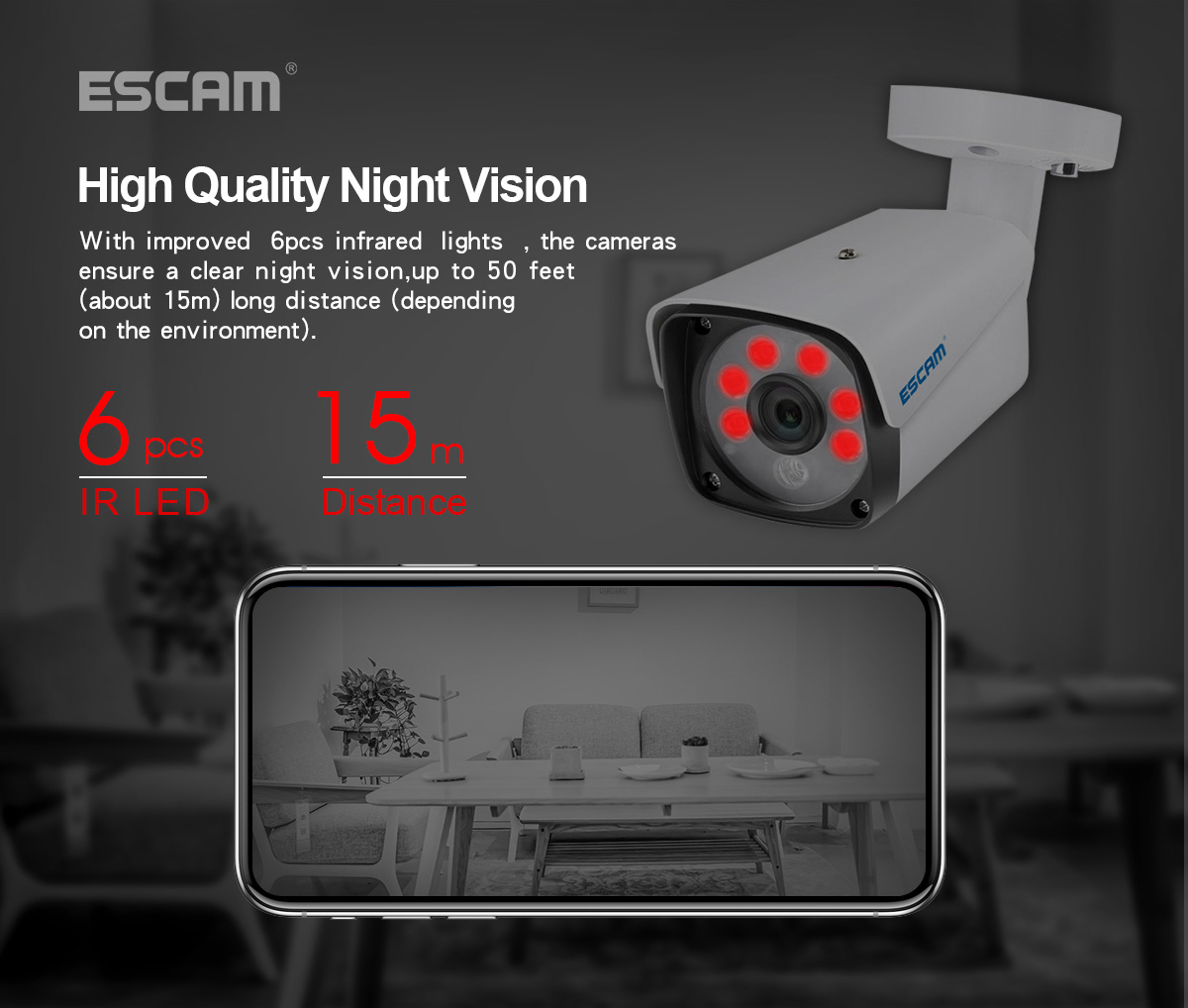

| IR Distance | 15m(50ft) | ||
| Backlight Compensation | Support | ||
| DWDR | Support | ||
| Video | Compression | H.265/H.264 | |
| Resolution | Main Stream: 1920*1080(1080P), 1280*960(960P), 1280*720(720P), 704*576(D1) | ||
| Sub Stream:704*576(D1), 640*480(VGA), 352*288（CIF), 176*144(QVGA) | |||
| Bit Rate | 32Kbps~ 8Mbps | ||
| Frame Rate | 20fps | ||
| Audio | Interface | Not support | |
| Network | Interface | One 10M/100Mbps RJ45 | |
| Network Protocols | HTTP, TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol | ||
| Browser Supported | IE browser | ||
| OS Supported | PC: Windows; Smart Phone: iOS, Android | ||
| Onvif | Support | ||
| General | Power Supply | DC12V & PoE (IEEE 802.3af) | |
| Power Consumption | <6W | ||
| Working Environment | -10 Celsius degree ~ +55 Celsius degree, 10%~90% | ||
| Ingress Protection | IP66 | ||

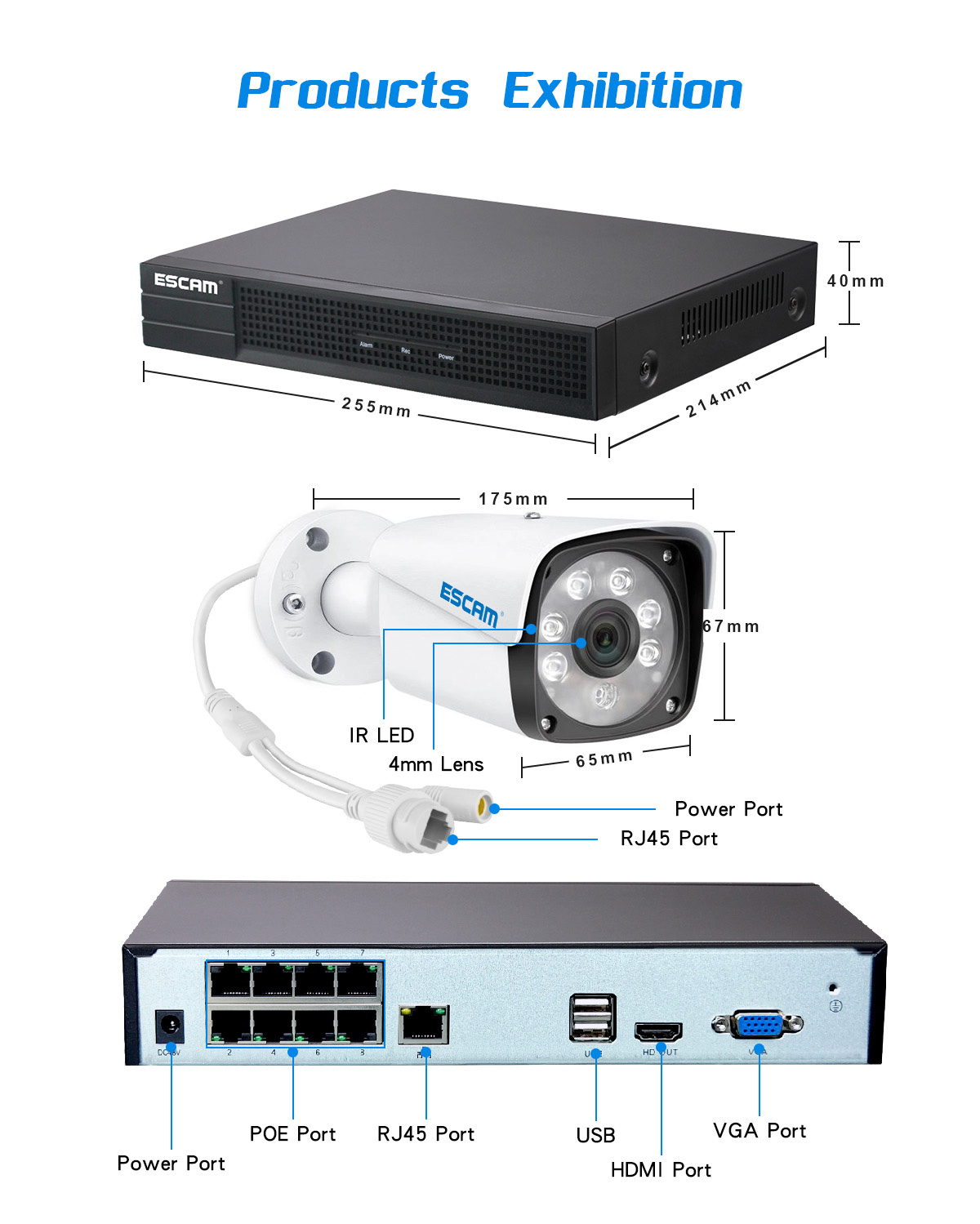

| Dimensions | 175*67*65mm | ||
| Weight | 0.25KG | ||
| NVR Parameter | |||
| Syetem | GUI | 24-Bit True Color | |
| Operating System | Embedded Linux OS | ||
| A/V Input | Video Input | 4 x PoE IP Camera | |
| Audio Input | Not support | ||
| A/V Output | VGA Output | 1024*768, 1280*1024, 1440*900, 1920*1080(1080P) | |
| HDMI Output | 1024*768, 1280*1024, 1440*900, 1920*1080(1080P) | ||
| Audio Output | Not support | ||
| Playback Resolution | 1080P/720P | ||
| Synchronous Playback | 4 Channel | ||
| HDD | Interface Type | 1 SATA Interface | |
| Maximum Capacity | 4TB | ||
| External Interface | USB Connector | 2 x USB 2.0 | |
| Network Interface | 10M/100M Ethernet RJ45 port, 4pcs Network POE Ports for IP Cameras | ||
| Network | Network Protocol | HTTP, TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol | |
| Mobile Device | iPhone, Android Smartphones | ||
| Remote Software | App, PC Client (Windows) | ||
| Onvif | Support | ||
| General | Power Supply | Input 110~260V, 52V 2.3A | |
| Consumption | <20W without PoE Cameras | ||
| Working Environment | -10°C~+45°C (14°F~113°F),10%~90% | ||
| Dimension | 255*214*40mm | ||
| Weight | 0.75kg | ||

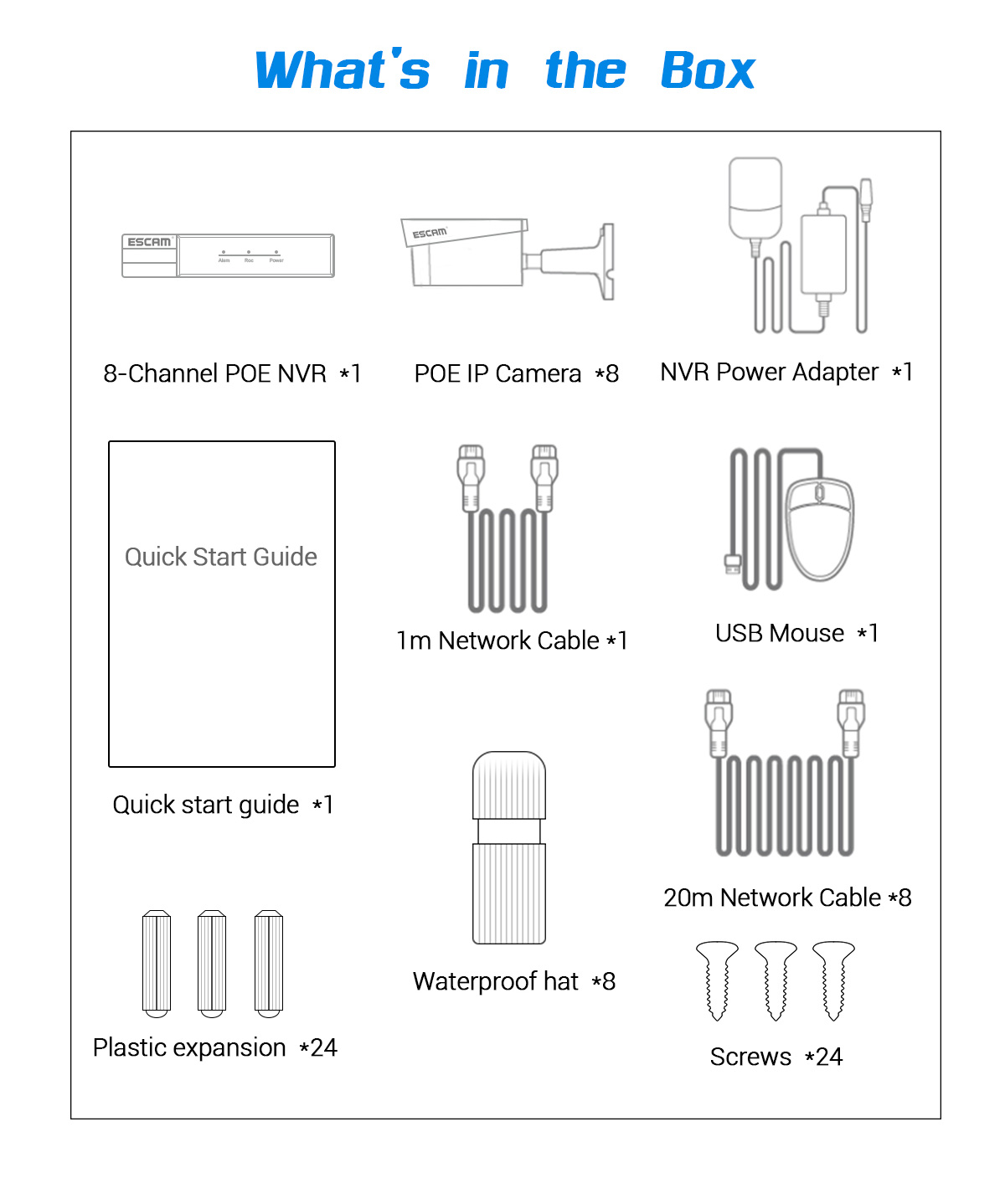

Package included:
- 1 x 8CH POE NVR
- 8 x IP Camera
- 1 x 1M Network Cable
- 8 x 20M Network Cable
- 9 x Power Adapter
- 1 x Mouse
- 8 x Screw Bag
- 8 x Waterproof Hat
- 1 x English and Chinese Manual
