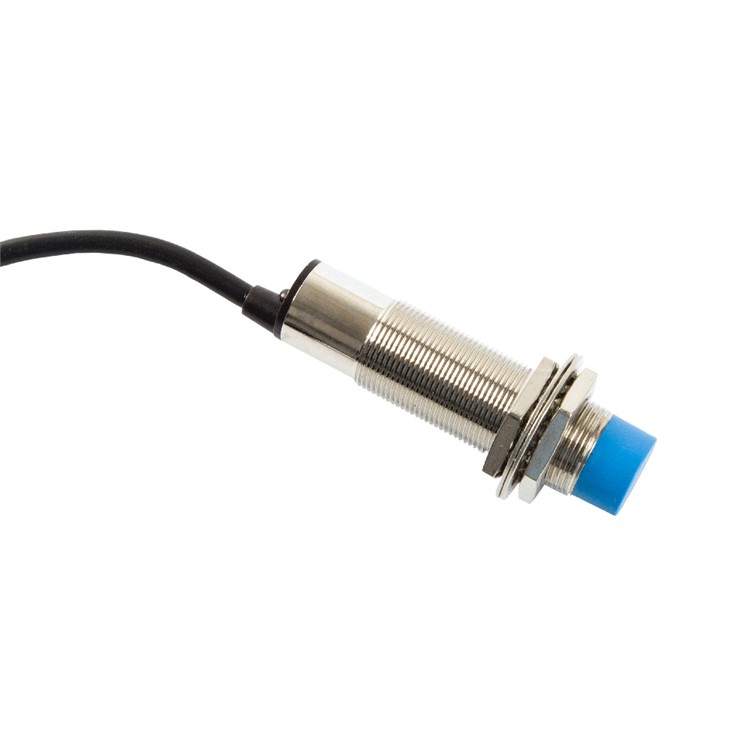

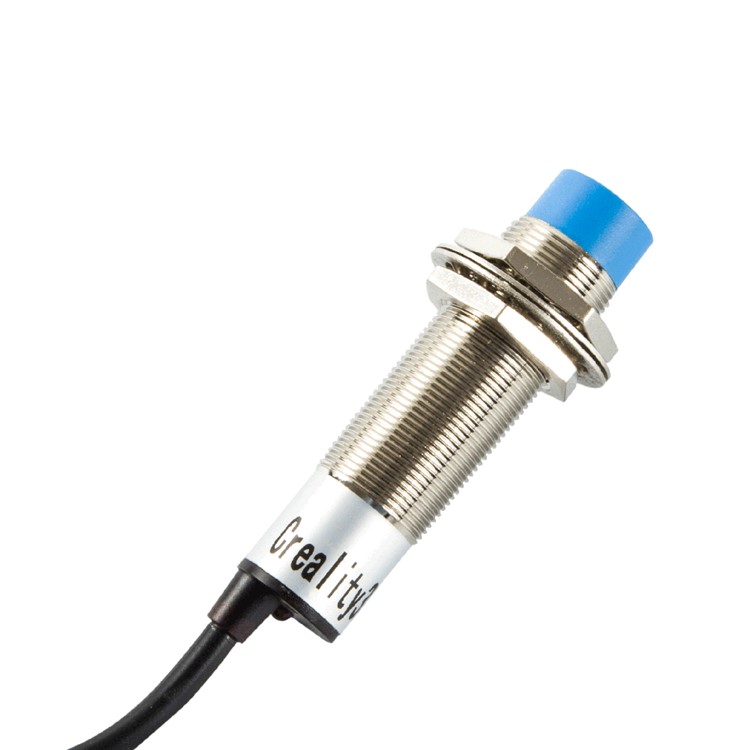

Creality Auto Leveling Position Sensor for 3D Printer CR-10S

• 100% Brand new original creality 3D parts

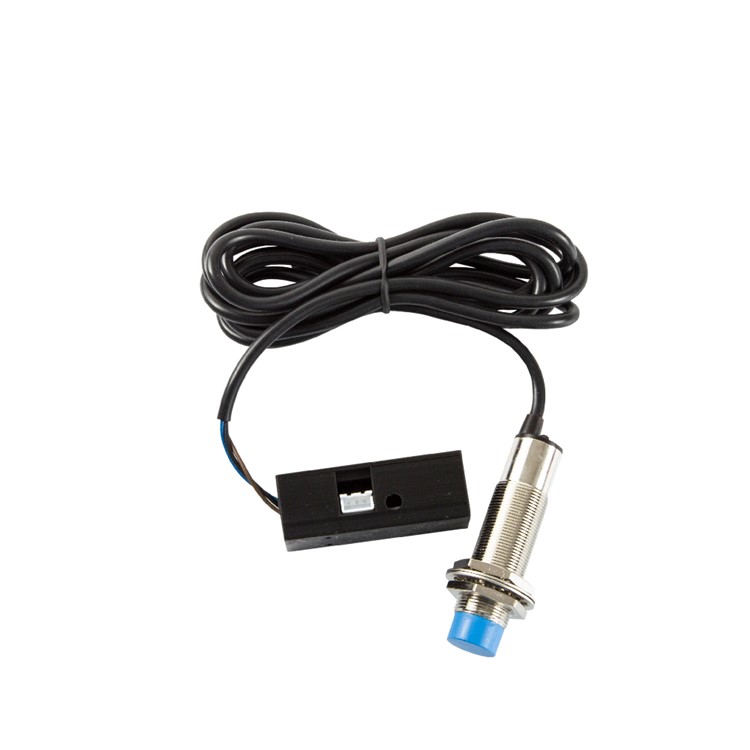

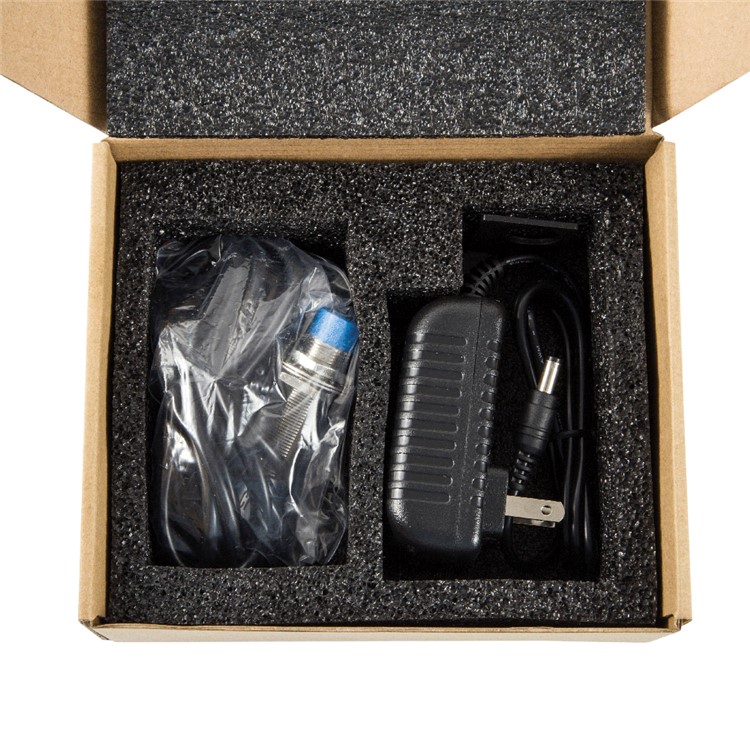

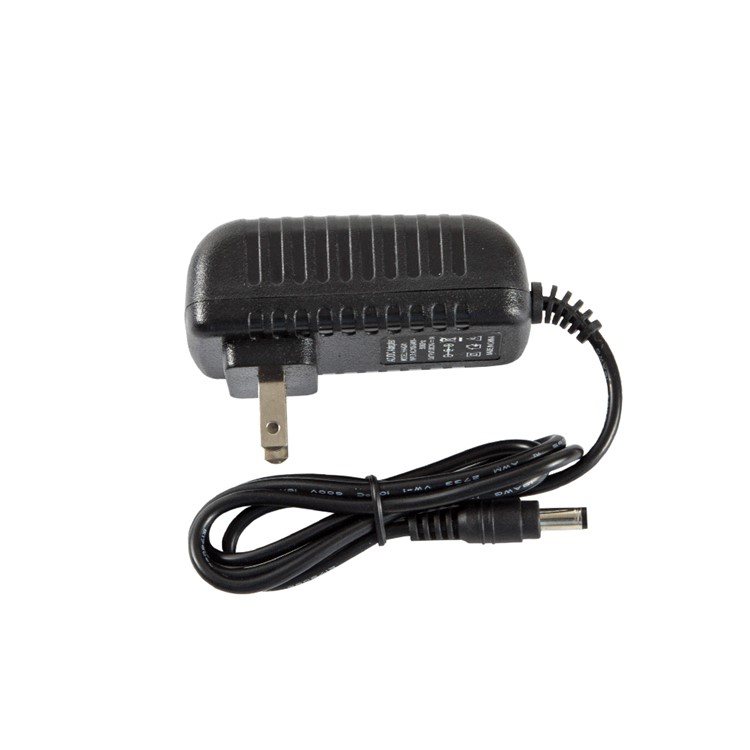

• Comes with mounting bracket and power adapter

• Fit for CR-10 S, CR-10 S4, CR-10 S5 3D Printer

• Auto leveling sensor for 3D printers, can precisely measure the tilt of your print surface

• Greatly improve the printing precision of your 3D printer

Specifications:

• Product type: proximity switch

• Dimension: cylinder M18 x 1(mm)

• Detection mode: capacitive type

• Detection distance: 8mm

• Output type: DC NPN open

• Maximum working frequency: 30Hz

• Rated working voltage: 6-36VDC

• Rated working current: ≤200mA

• Polarity protection: Yes

• Short circuit protection: Yes

• Action directive: LED

• Working temperature: -20℃～+60℃

• Voltage drop: ≤2.5V

• Return difference: ≤15%Sn

• Repetition precision: ≤5%Sn
