BAOFENG F8+ Dual-band Handheld Transceiver Interphone with LCD Display

Price:
$ 18.94

Free Shipping

For just $ 18.94 , buy BAOFENG F8+ Dual-band Handheld Transceiver Interphone with LCD Display from the wholesale webshop online.

Specifications

Gross Weight 0.516kg
Volume Weight 0.494kg
Length 21.000cm
Width 17.500cm
Height 6.000cm
Weight 0.461kg
With Retail Packaging No

Product Description

BAOFENG F8+ Dual-band Handheld Transceiver Interphone with LCD Display

BAOFENG F8+ is a dual band radio. This easy-to-use radio will deliver you secure, instant and reliable communication at peak effciency.

  • Dual-band handheld transceiver with LCD display function

  • DTMF encoded

  • Lithium-ion battery with high capacity

  • Commercial FM radio receiver (65MHz~108MHz)

  • Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable

  • Function VOX (vioce operate transmission)

  • Emergency Alarm function

  • Up to 128 memory channels

  • Broadband (wide) / Narrowband (narrow) selectable

  • High power (5W) / Low power (1W) selectable

  • Display illumination and programmable keyboard

  • Function "beep" on the keyboard

  • Dual watch / dual reception

  • Selectable frequency step (2.5 / 5 / 6.25 / 10 / 12.5 / 25 KHz)

  • Function "OFFSET" (frequency offer for repeater access)

  • Battery saving function

  • Timer transmission "TOT" programmable

  • Selecting the scan mode

  • Function Busy Channel Lock"BCLO"

  • Built-in RX CTCSS/DCS scan

  • Built-in LED flashlight

  • Programmable by PC

  • LeveThreshold"Squelch" adjustable from 0 to 9

  • Crossband reception

  • Tone end of transmission

  • Built-in key lock

Specifications:

  • Type: Dual-band Transceiver

  • Brand: BAOFENG

  • Model: F8+

  • Frequency range: U/V: 400-520MHz/136-174MHz

  • Channel capacity: 128

  • Channel spacing: 25.0kHz / 12.5kHz

  • Frequency stability: ±1.5ppm

  • Working temperature: -20℃ ~ +60℃

  • Antenna impedance: 50Ω

  • Working voltage: 3.7V

  • Battery: 1600mAh (Lithium ion battery)

  • Receiving sensitivity: 0.15μV / 0.18μV

  • Adjacent channel selectivity: 65dB / 55dB

  • Intermodulation Rejection: 55dB

  • Spurious Response: ≥60dB

  • Signal to noise ratio: 40dB / 35dB

  • Rated audio output power: ≥600mW

  • Rated audio distortion: ≤5%

  • Transmitting power: ≤5W

  • Modulation mode: 16KΦF3E / 8KΦF3E

  • Modulation limit: ≤5kHz / ±2.5kHz

  • FM distortion: ≤5%

  • Residual FM: -45dB / -35dB

  • Adjacent channel power: -65dB / -55dB

  • Stray and harmonic: ≤-36dBm

  • Product size: Approx. 10 x 5.7 x 3.7cm / 3.9 x 2.2 x 1.45in

  • Product weight: Approx. 203g / 7.2oz

Package included:

  • 1 x Interphone
  • 1 x Battery pack
  • 1 x Charge adapter
  • 1 x Drop-in charging tray
  • 1 x Earphone
  • 1 x Clip
  • 1 x Antenna
  • 1 x Hand strap
  • 1 x User manual(English)
TP10310302315B-1
TP10310302315B-2

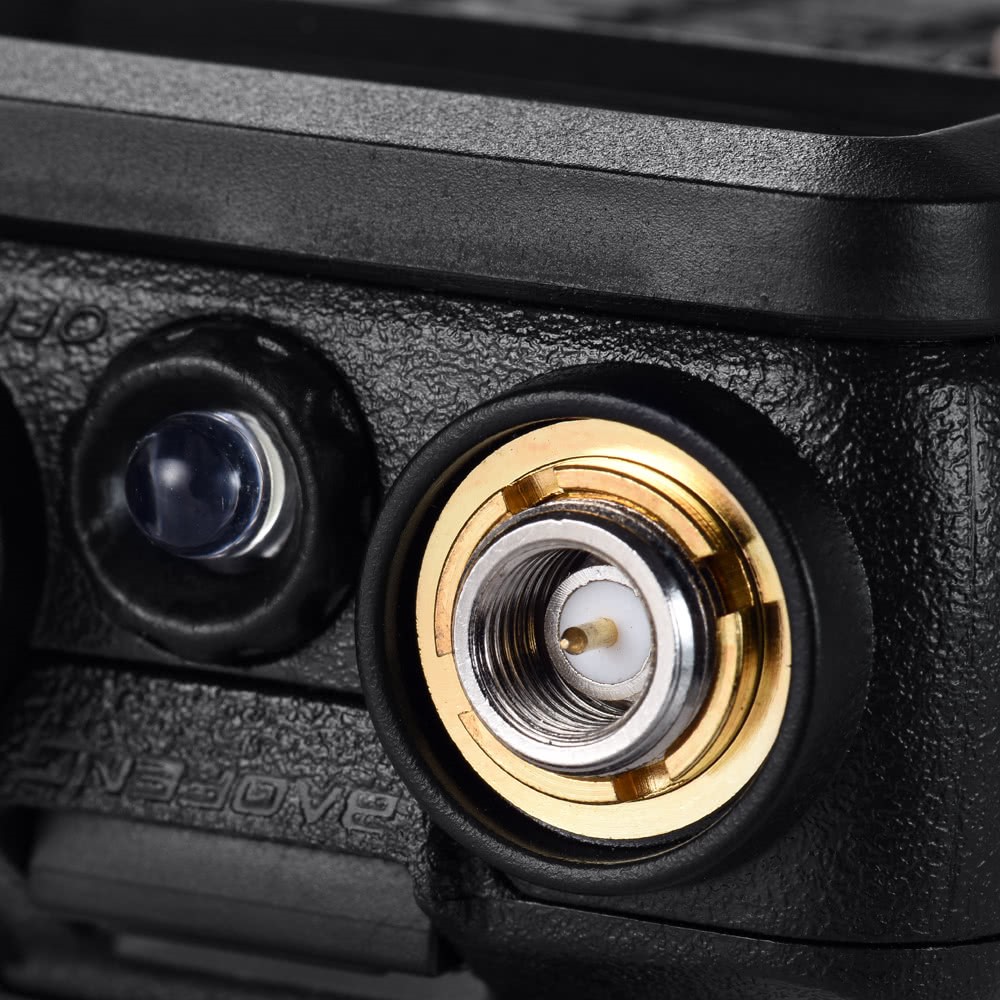

TP10310302315B-3

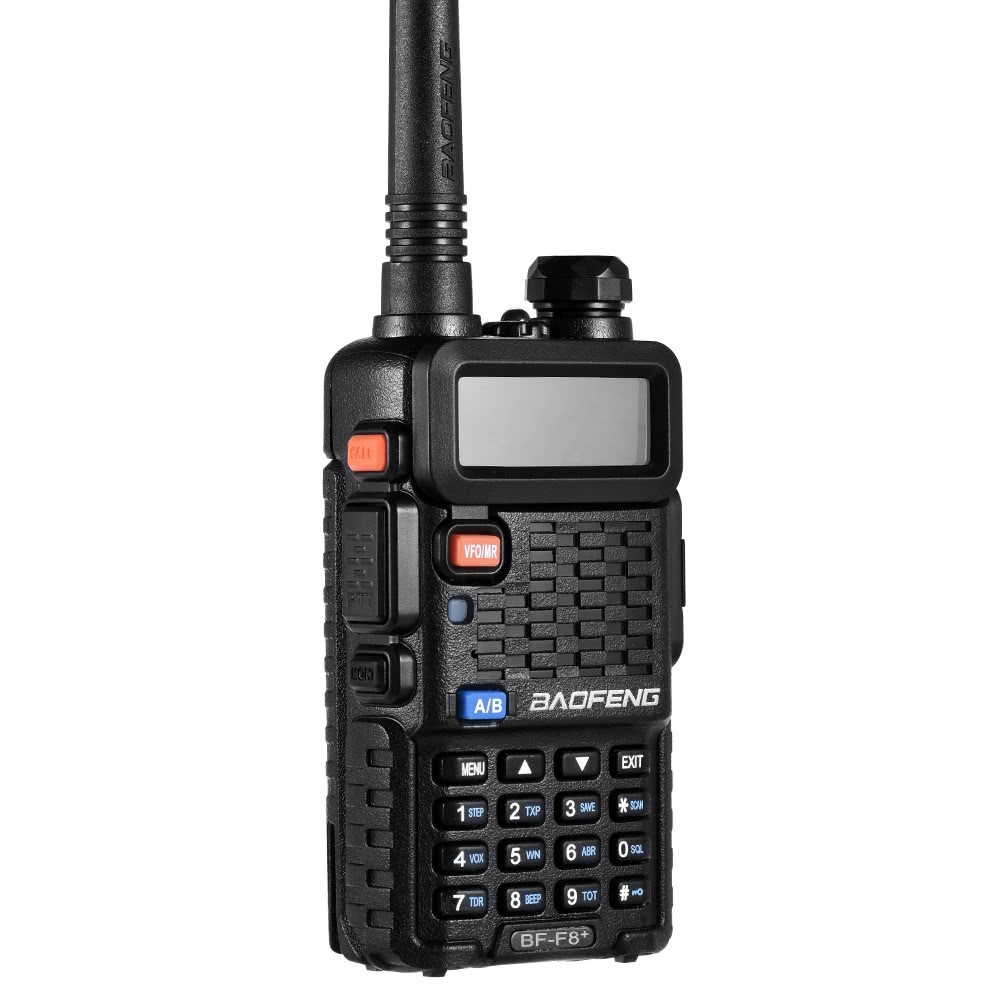

TP10310302315B-4
TP10310302315B-5

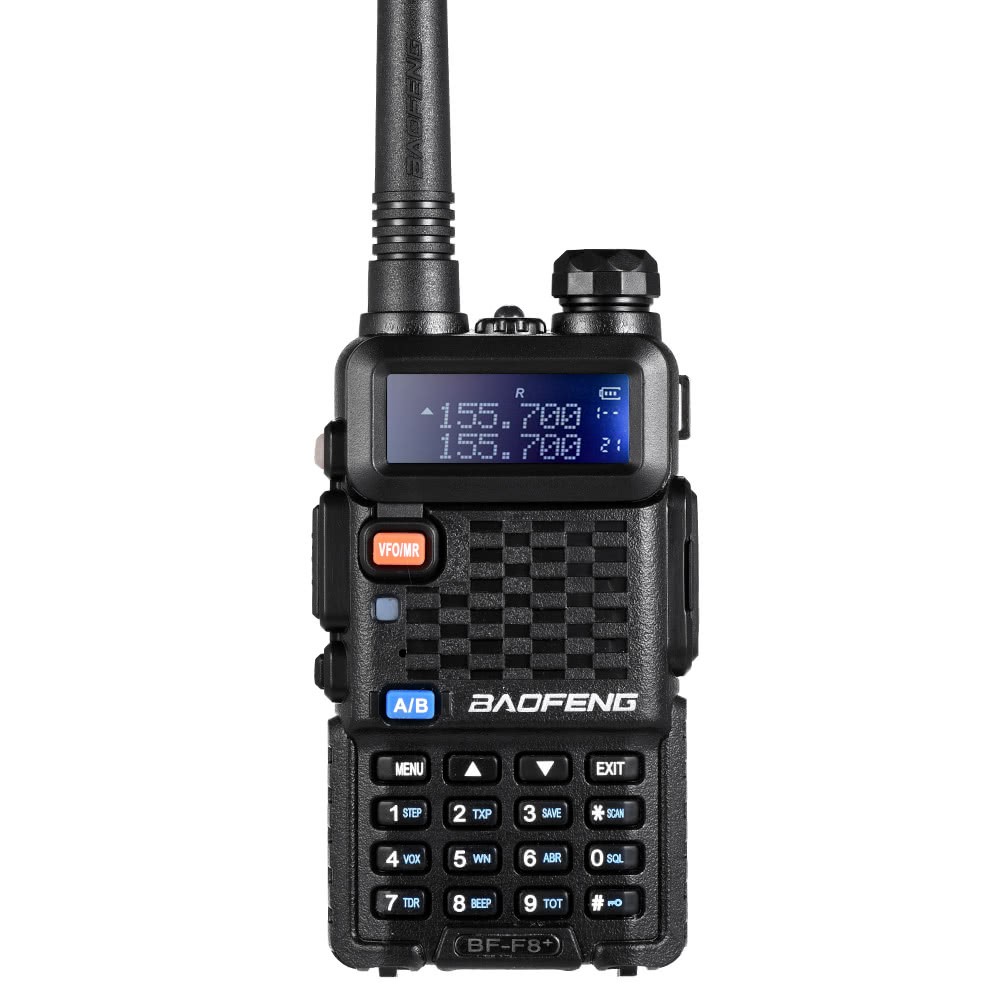

TP10310302315B-6
TP10310302315B-7

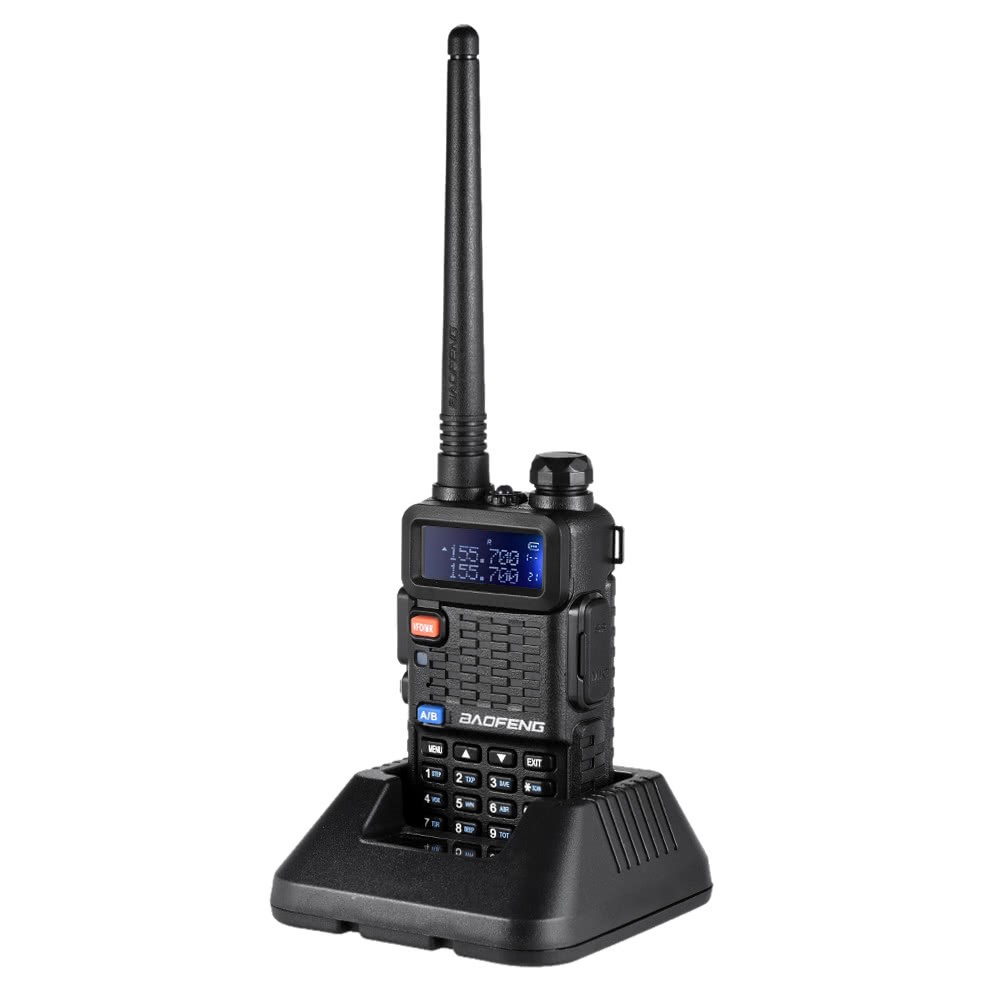

TP10310302315B-8

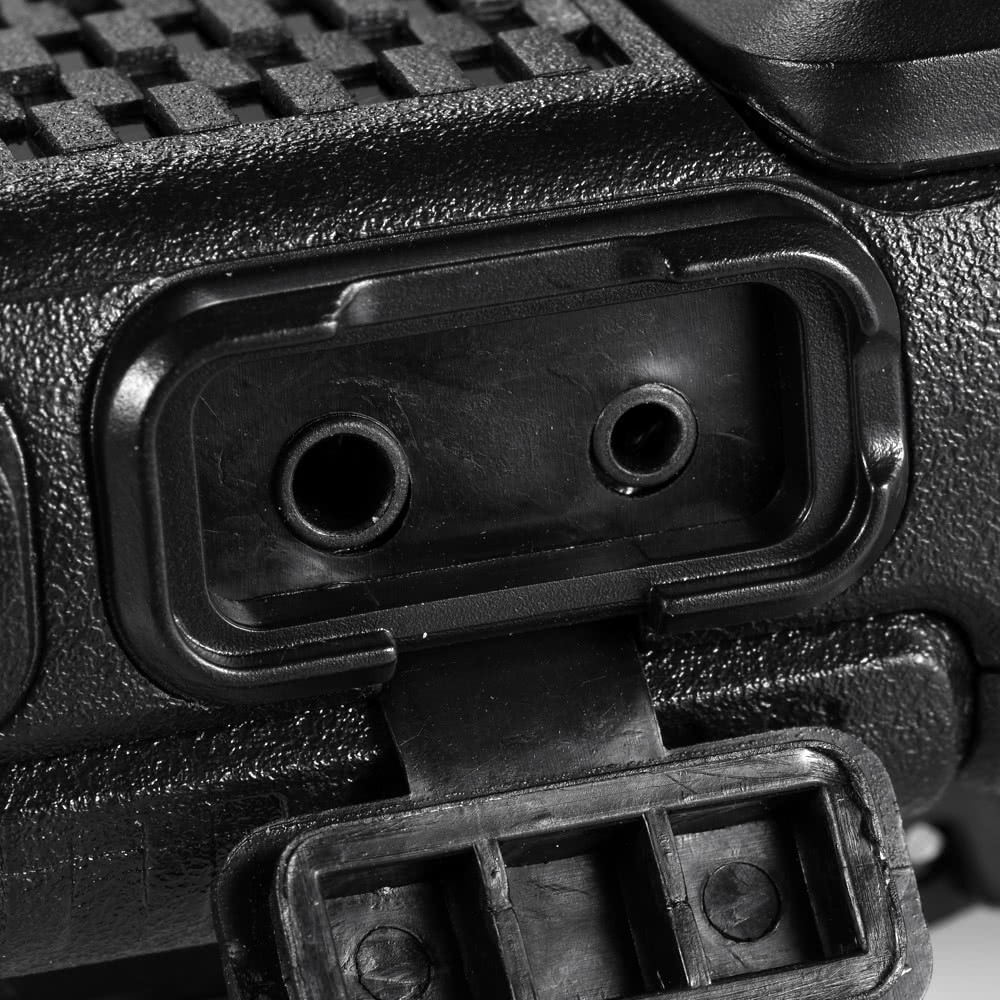

TP10310302315B-9
TP10310302315B-10

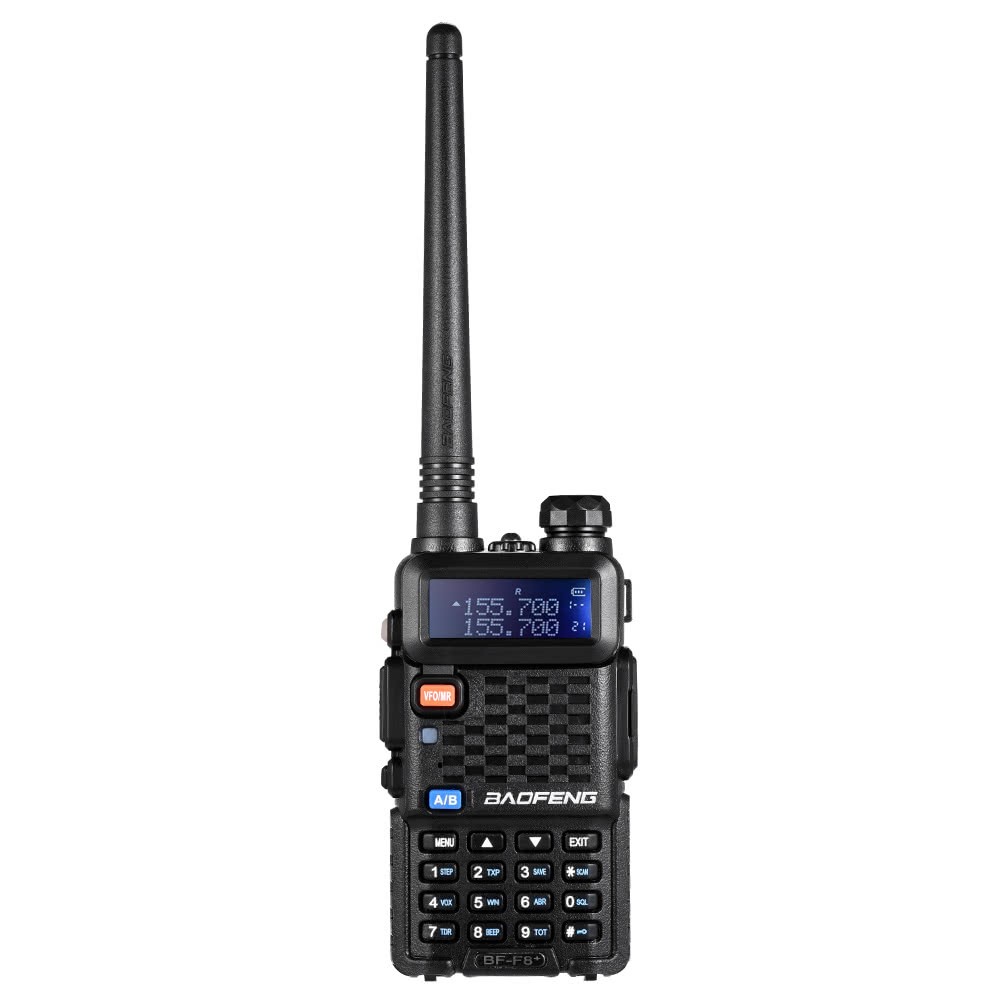

TP10310302315B-11

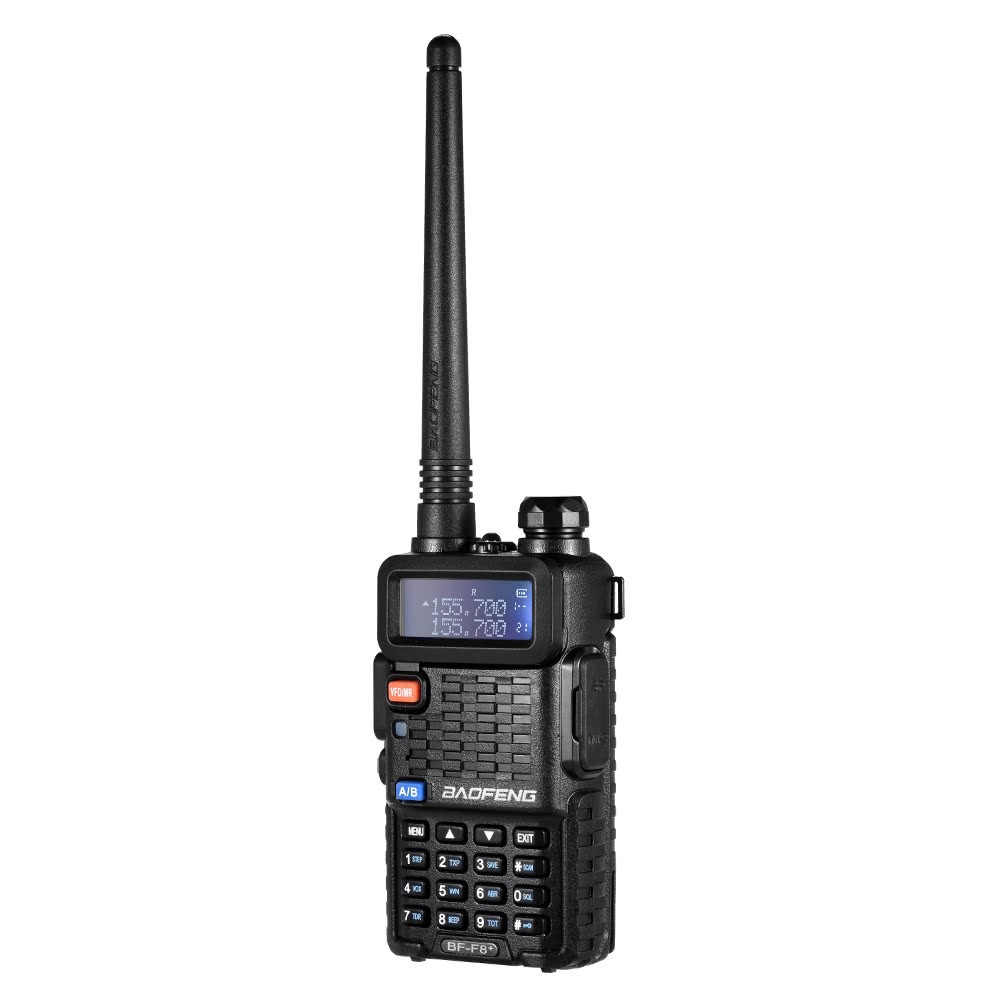

TP10310302315B-12

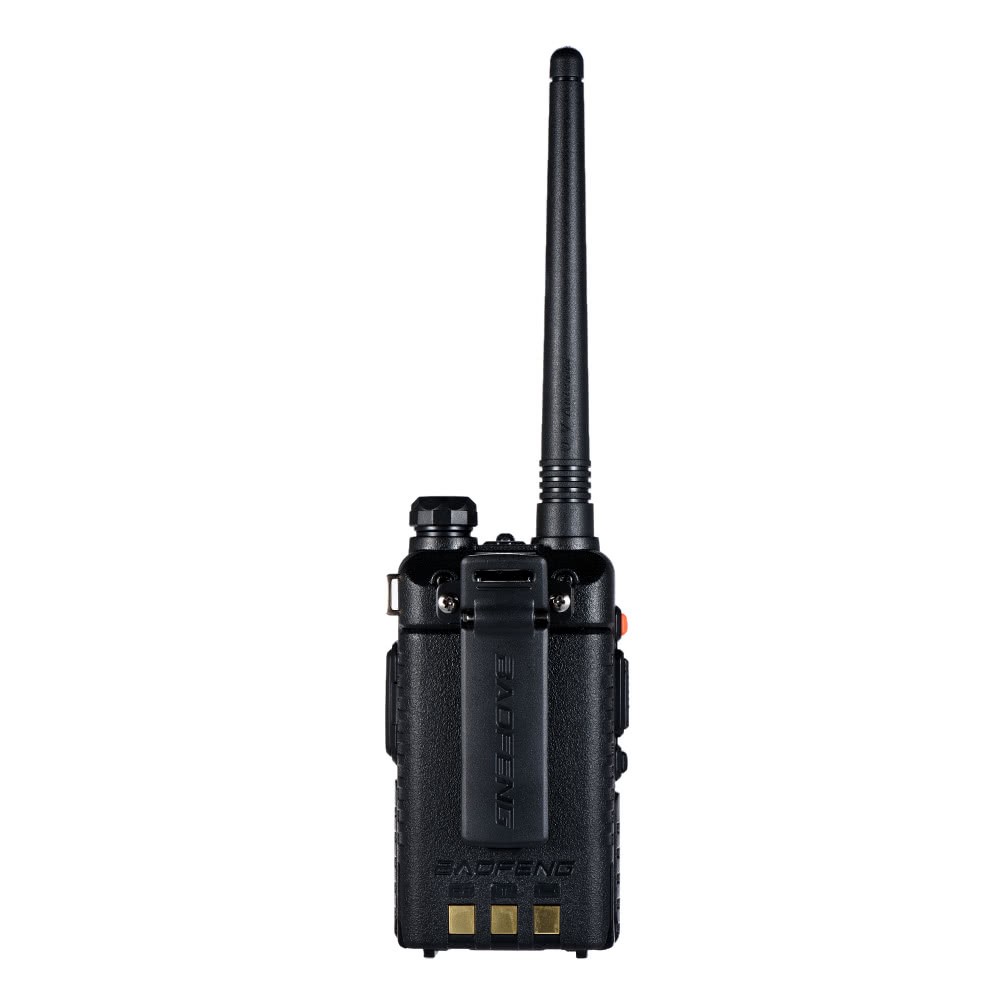

TP10310302315B-13

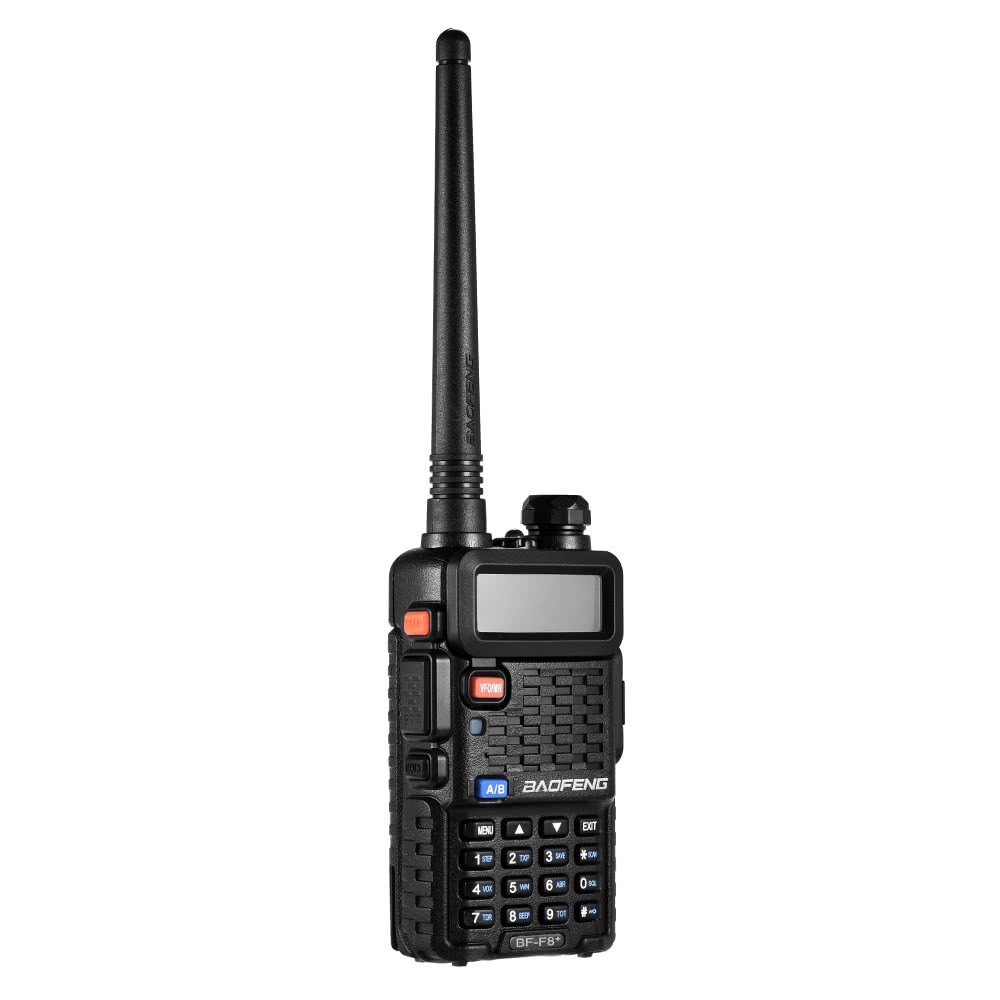

TP10310302315B-14
