ESCAM QH001 ONVIF H.265 1080P P2P IR Dome IP Camera with Smart Analysis Function – EU Plug

Price:
$ 26.46

Free Shipping

For just $ 26.46 , buy ESCAM QH001 ONVIF H.265 1080P P2P IR Dome IP Camera with Smart Analysis Function – EU Plug from the wholesale webshop online.

Specifications

Certificate CE, RoHS
Home Safety Type IP Cameras
Plug EU Plug
Retail Packaging Colored Box
User Manual (Language) English
Gross Weight 0.392kg
Volume Weight 0.531kg
Length 13.500cm
Width 13.500cm
Height 13.000cm
Weight 0.350kg
With Retail Packaging Yes

Product Description

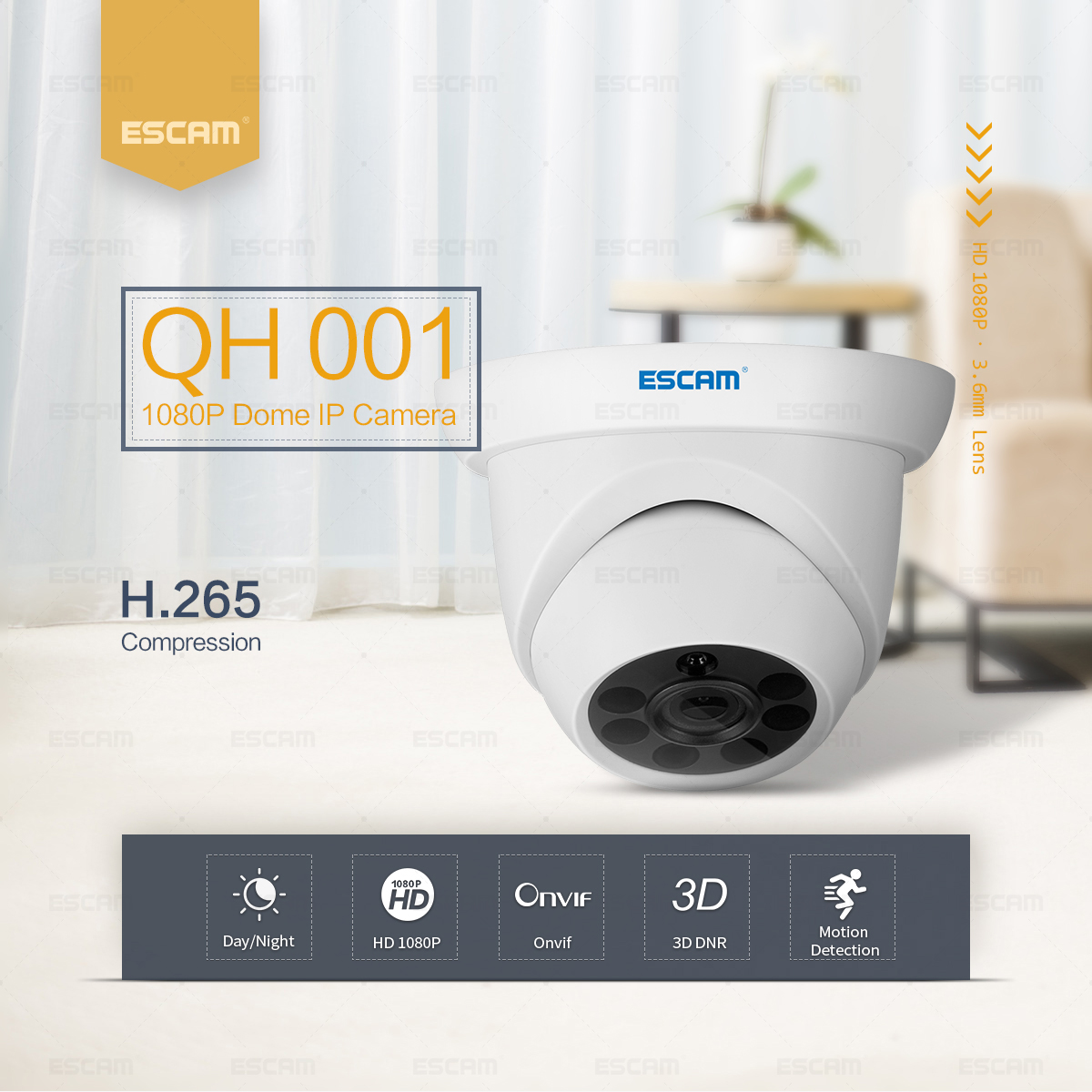

ESCAM QH001 ONVIF H.265 1080P P2P IR Dome IP Camera with Smart Analysis Function – EU Plug
  • H.265 2MP HD 1080P

  • Support day/night, IR distance 15m, make your night view as daytime

  • Support motion detection/APP push

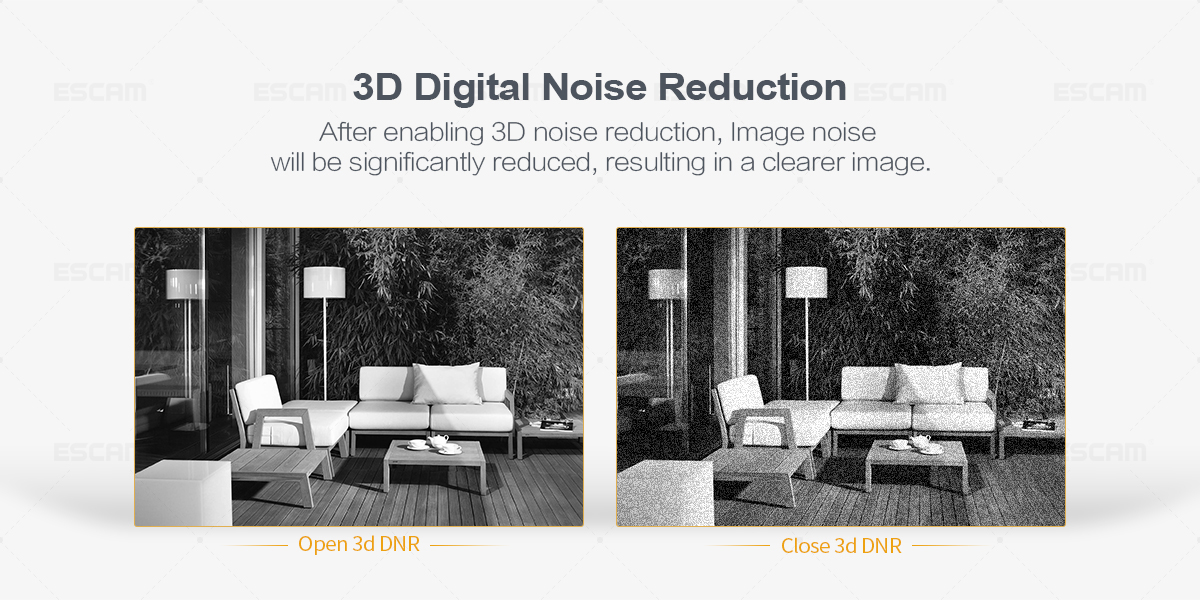

  • Support 3D digital noise reduction

  • Supprt maximum to four privacy mark areas

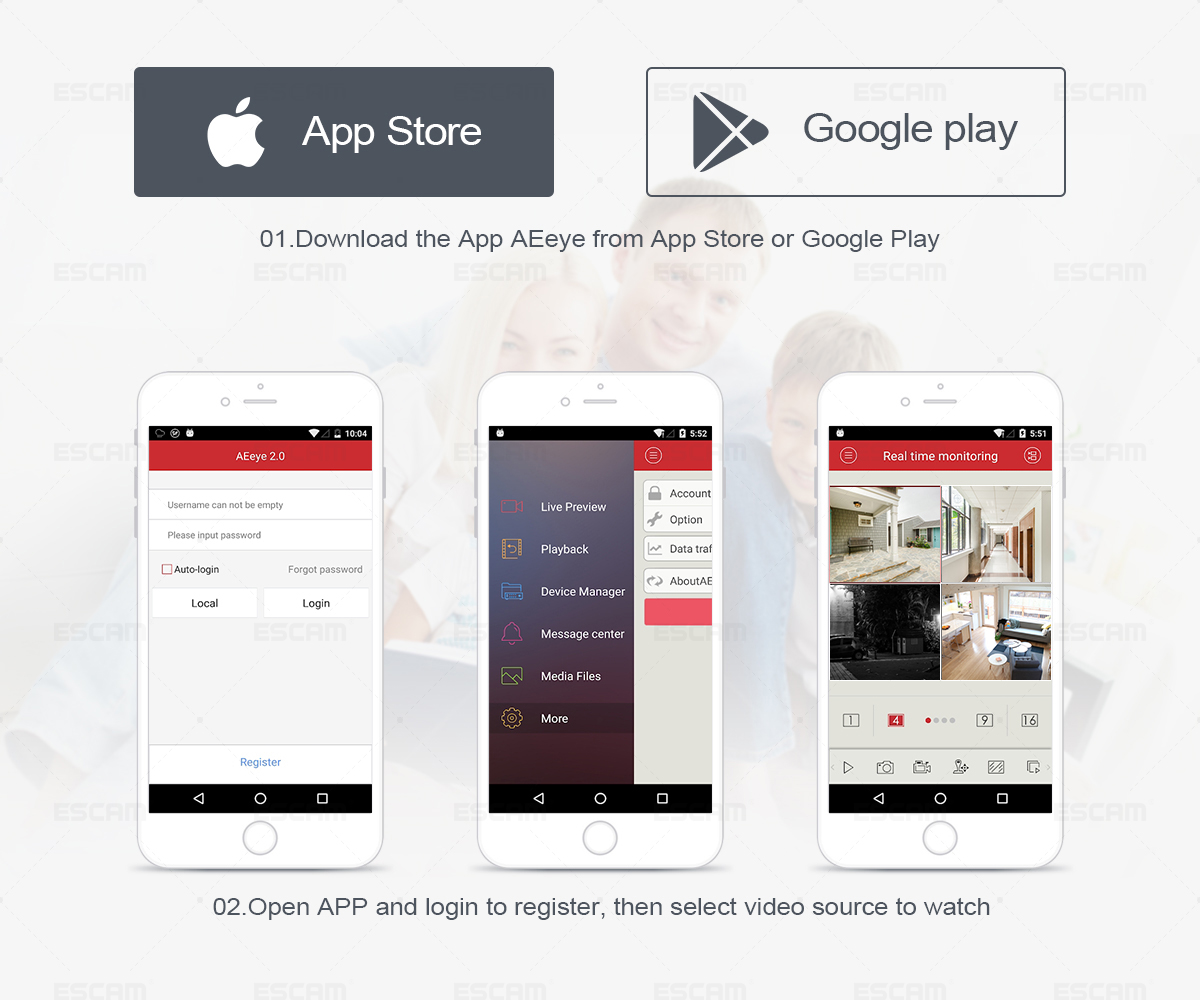

  • Support CMS viewing, APP viewing and brower viewing

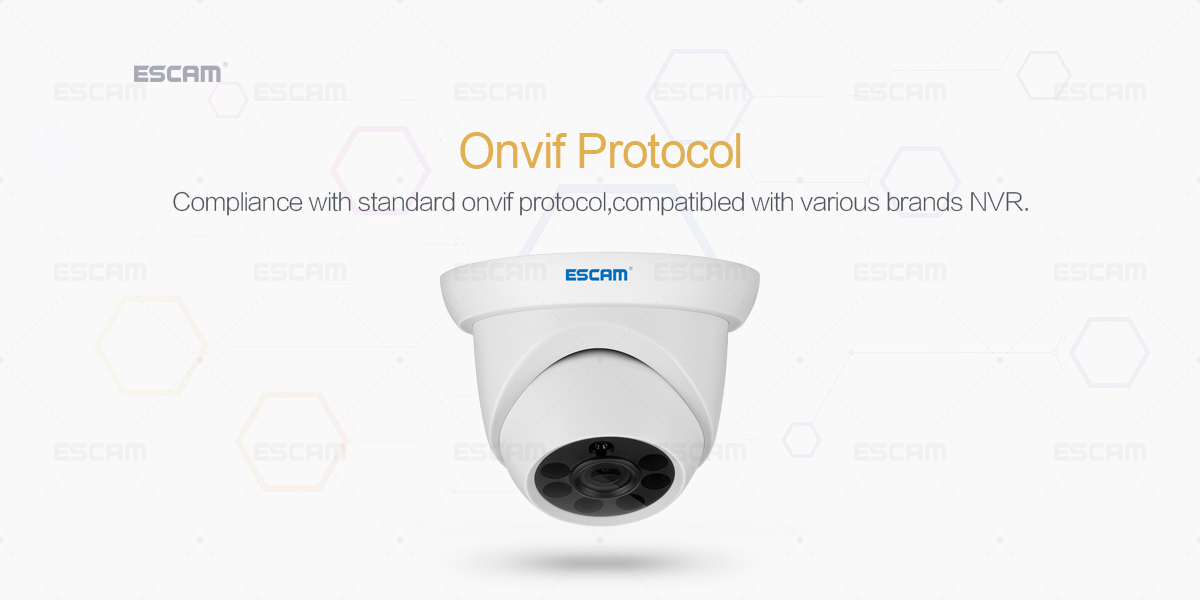

  • Support onvif, compatible with other devices

Support Smart Analysis Function:

  • Target Count: Calculating body or object flow

  • Object Left/Lost: It will issue an alarm when items are left or lost

  • Area Detection: Detecting target in the area

  • Line Crossing: It will issue an alarm after crossing the warning line

Specifications:

Model ESCAM QH001
Camera
Sensor 1/2.9'' CMOS
Effective Pixels 2MP
Electronic Shutter Speed Auto/Manual, 1/25~1/10000s
Minimum Illumination Color: 0.01Lux@F1.2; B&W: 0Lux@F1.2(IR on)
Lens 3.6mm Fixed lens
Angle of View 75.7°
Functions
Day/Night Switch 15M(6 x IR Lamps)
White Balance Auto white balance
BLC Support BLC
S/N Ratio ≥50db (AGC closed)
Digital Noise Reduction Support 3D noise reduction
WDR Support D-WDR
Motion Detection Support motion detection
Privacy Shelter Support 4 zones
OSD Support OSD setting
Smart Analysis Target Count, Object Left/Lost, Area Detection, Line Crossing
Video

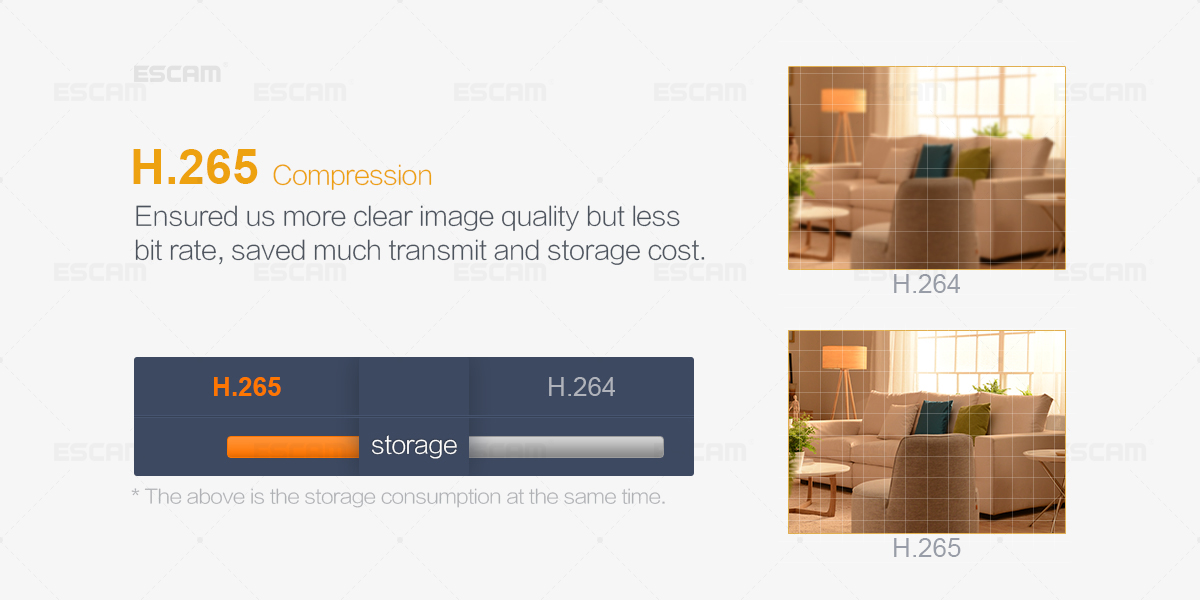

Compression H.264/H.265
Resolution Mainstream: 1080P(1920 x 1080)
Substream: D1(704 x 576), VGA(640 x 480)
Video Frame Rate 1-20FPS
Bite Rate 16Kbps-4Mbps continuously adjustable, support CBR/VBR
Video Adjustment Brightness, saturability, chromacity adjustment
Audio
Audio Not support
Network
Ethernet RJ-45 (10/100Base-T)
IP Type Dynamic IP and Static IP
Network Agreement TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP, RTSP
Access Protocol Support ONVIF
Maximum User Qty 4
Client iPhone, iPad, Android, Windows PC
General
Power Supply DC12V 1A
Power Consumption <6W
Working Environment -20 degree Celsius ~ +60 degree Celsius, 10%~90%

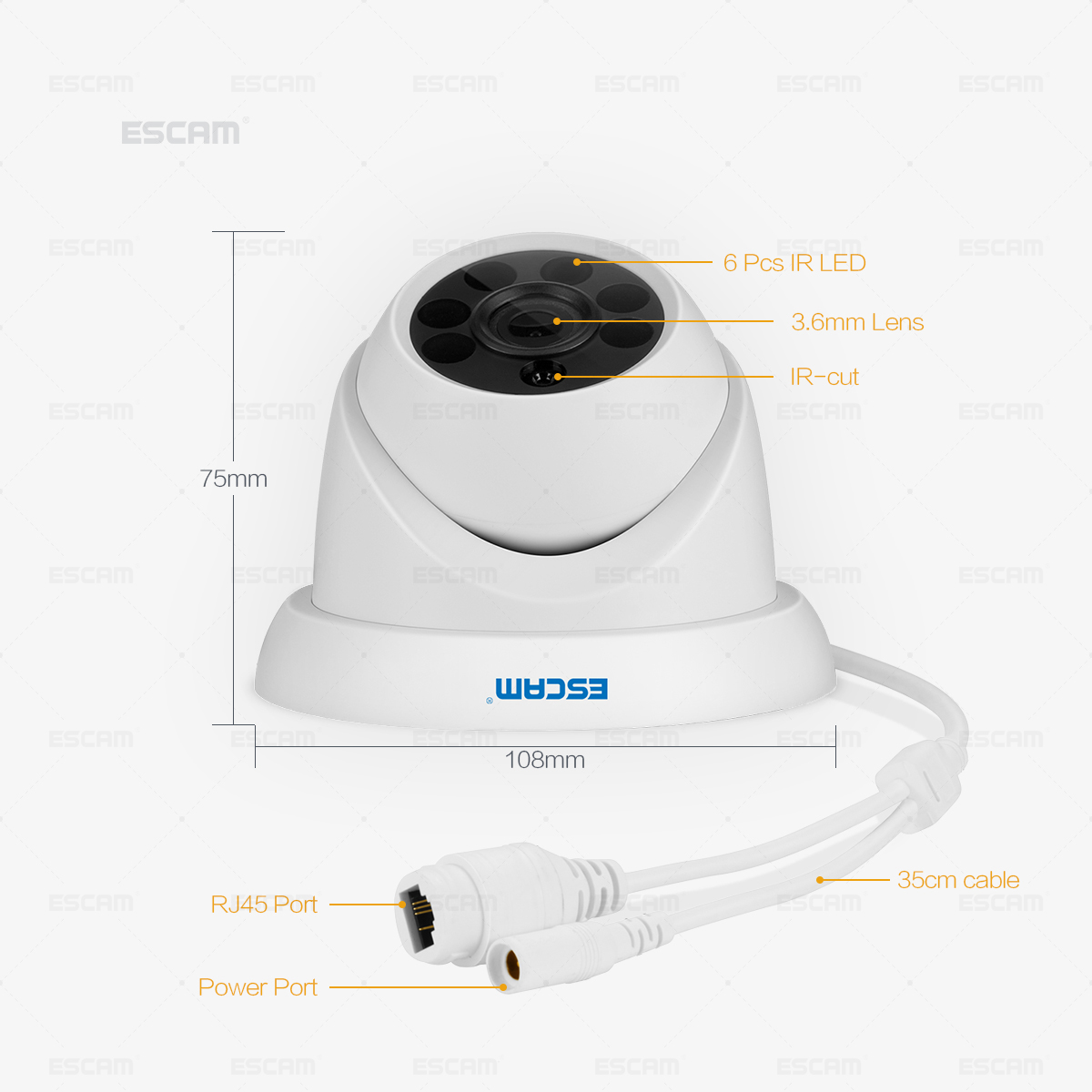

Dimension 108mm x 108mm x 75mm
Weight 0.16Kg
Package Dimension 135mm x 135mm x 130mm
Package Weight 0.28Kg

Package included:

  • 1 x IP Camera
  • 1 x Power Adapter
  • Several Screws
  • 1 x English Manual
